FB and FBR fence brackets make the connection between fence rails and posts simple and strong. Eliminates the need for toe nailing or screwing. Clean, versatile connections make planning and building fences, deck/porch railings and louvers easier and faster.

Material

See table

Finish

FB/FBR—Galvanized; FB24SS—stainless steel. Some products available in ZMAX® coating. See Corrosion Information.

Installation

  • Holes are sized for 8dx1 1/2", 8d commons or Simpson Strong-Tie® 9x1 1/2" Strong-Drive SD Connector screws into the supporting member.
  • FB24R is sized for 10dx1 1/2" or Simpson Strong-Tie 9x1 1/2" Strong-Drive SD Connector screws.
  • FB26 is sized for Simpson Strong-Tie 9x1 1/2" Strong-Drive SD Connector screws.
  • Some products may be installed with the Strong-Drive® SD Connector screw. See model table.

Related Literature

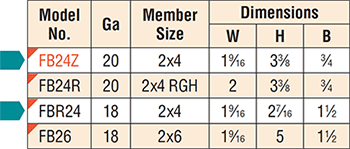

Product Information Tables

    These products are available with additional corrosion protection. Additional products on this page may also be available with this option, check with Simpson Strong-Tie for details.

   These models are approved for installation with the Strong-Drive® SD Connector screw

Typical FB26 Fencing Installation
  1. FB26 has an allowable load for F1 of 365 lbs.
  2. FBR24Z: R = rail (not rough).
  3. NAILS: 10dx1 1/2 = 0.148" dia. x 1 1/2" long,
    8d = 0.131" dia. x 2 1/2" long,
    8dx1 1/2 = 0.131" dia. x 1 1/2" long.
    See other nail sizes and information.

Code Reports

Part IAPMO UES ER ICC-ES ESR City of Los Angeles State of Florida
FBSee specific model numbers for code listings.
FB24RNo load capacity: Products not tested or submitted because they are not load rated and code approval not required.
FB24ZNo load capacity: Products not tested or submitted because they are not load rated and code approval not required.
FB26No load capacity: Products not tested or submitted because they are not load rated and code approval not required.
FBL24No load capacity: Products not tested or submitted because they are not load rated and code approval not required.
FBRSee specific model numbers for code listings.
FBR24ZNo load capacity: Products not tested or submitted because they are not load rated and code approval not required.
