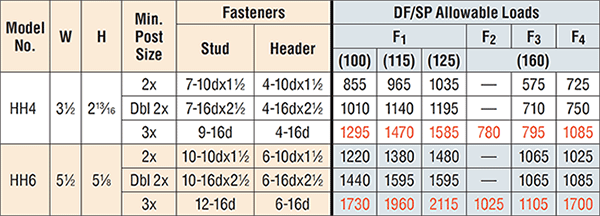

Load Tables

HH Load Directions
  1. Loads have been increased with no further increase allowed; reduce where other loads govern.
  2. For 3x posts, 16dx2 1/2" nails may be substituted with no reduction in load.
  3. For SPF/HF lumber use 0.86 x DF/SP allowable loads.
  4. NAILS: 10dx1 1/2= 0.148" dia. x 1 1/2" long, 16dx2 1/2= 0.162" dia. x 2 1/2" long, 16d = 0.162" dia. x 3 1/2" long. See other nail sizes and information.

Code Reports

Part IAPMO UES ER ICC-ES ESR City of Los Angeles State of Florida
HHSee specific model numbers for code listings.
HH4 ER-102 ER-112 RR25814 FL10446
HH6 ER-102 ER-112 RR25814 FL10446

Drawings

Part Orthographic Perspective
HHNone
HH
DWG DXF
HH4
HH4
DWGDXF
HH4 front view
DWG DXF
HH4 left view
DWG DXF
HH4 right view
DWG DXF
High Wind-Resistant Construction D59: Header to Wall Framing
DWG DXF
HH6
HH6
DWGDXF
HH6 front view
DWG DXF
HH6 left view
DWG DXF
HH6 right view
DWG DXF
