RR Ridge-Rafter Connector

RR

An interlock provides alignment control and correct nailing locations. For a rafter-to-face connector, flatten the top flange into the face plane. The RR may be used with rafters sloped up to 30°.

Material

 18 gauge

Finish

 Galvanized

Installation

  • Use all specified fasteners. See General Notes.
  • Some products may be installed with the Strong-Drive® SD Connector screw. See model table.

Related Literature

Load Tables

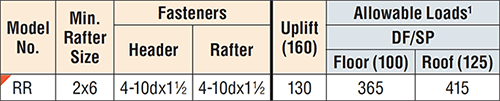

Load values with Nails

   These models are approved for installation with the Strong-Drive® SD Connector screw. See the load values below.

  1. Floor loads may be adjusted for other load durations according to the code, provided they do not exceed the table roof loads.
  2. NAILS: 10dx1 1/2 = 0.148" dia. x 1 1/2" long.
    See other nail sizes and information.
Load Values with Strong-Drive® SD Connector Screws
Model No. Fasteners Allowable Loads
Face Joist DF/SP SPF/HF
Uplift(160) Floor (100) Snow (115) Roof (125) Uplift (160) Floor (100) Snow (115) Roof (125)
RR 4-SD9112 4-SD9112 205 475 475 475 175 410 410 410

Code Reports

Part IAPMO UES ER ICC-ES ESR City of Los Angeles State of Florida
RR ESR-2553 ESR-2523 ESR-3096 RR25800 RR25910 FL10856

ESR-2523 is an Index of many of Simpson Strong-Tie Stamped and Welded Cold-formed Steel Products for Wood or Cold-formed Steel Construction

Drawings

Part Orthographic Perspective
RR
RR
DWGDXF
RR front view
DWG DXF
RR right view
DWG DXF
RR top view
DWG DXF
RR
DWG DXF
