LTS/MTS/HTS Twist Straps

LTS/MTS/HTS

Twist Straps

This product's information may differ depending on the category of use. You are currently viewing details related to Twist Straps. You can also view product information related to the category: Roof Truss and Rafter Connectors, Ties, and Straps for Cold-Formed Steel Construction

Twist straps provide a tension connection between two wood members. They resist uplift at the heel of a truss economically. LTS/ MTS have a 2" bend section and HTS has a 3 3/4" bend section that eliminates interference at the transition points between the two members.

Material

LTS—18 gauge; MTS—16 gauge; HTS—14 gauge

Finish

Galvanized. Some products available in stainless steel and ZMAX® coating. See Corrosion Information.

Installation

  • Use all specified fasteners. See General Notes.
  • LTS, MTS and HTS are available with the bend reversed. Specify "-REV" after the model number, such as MTS16-REV.
  • Some products may be installed with the Strong-Drive® SD Connector screw. See model table.

Related Literature

Load Tables

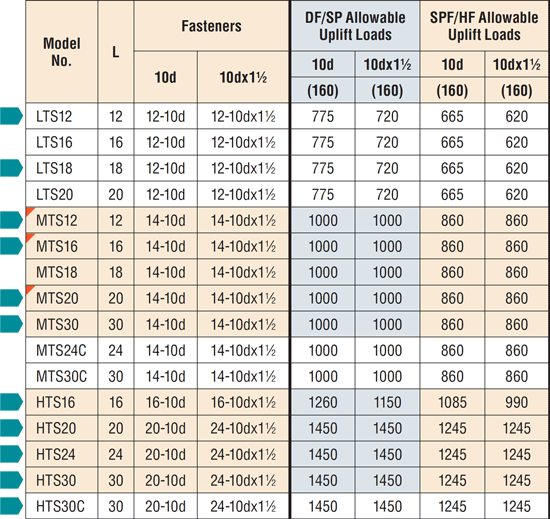

Load Values with Nails

    These products are available with additional corrosion protection. Additional products on this page may also be available with this option, check with Simpson Strong-Tie for details.

   These models are approved for installation with the Strong-Drive® SD Connector screw. See the load values below.

MTS30 Installation with I-joist Rafter
  1. Loads have been increased for wind or earthquake loading with no further increase allowed; reduce where other loads govern.
  2. LTS12 thru LTS20, MTS16 through MTS30, HTS24 through HTS30C (except HTS30) have additional nail holes.
  3. Install half of the fasteners on each end of strap to achieve full loads.
  4. All straps except the MTS30 and HTS30 have the twist in the center of the strap.
  5. Twist straps do not have to be wrapped over the truss to achieve the load.
  6. May be installed on the inside face of the stud.
  7. Allowable lateral loads are F1 = 75 lbs. and F2 = 125 lbs. when the following installation requirements are met. The first 7 nail holes each side of the bend must be filled with 10dx1 1/2 minimum nails. All additional fasteners may be installed in any remaining strap holes.
  8. NAILS: 10d = 0.148" dia. x 3" long, 10dx1 1/2 = 0.148" dia. x 1 1/2" long. See other nail sizes and information.
Load Values with Strong-Drive® SD Connector Screws
Model No. Fasteners (Total) Allowable TensionLoads (DF/SP) Allowable TensionLoads (SPF/HF)
(160) (160)

    These products are available with additional corrosion protection. Additional products on this page may also be available with this option, check with Simpson Strong-Tie for details.

MTS12 14-SD9112 870 750
MTS16 14-SD9112 870 750
MTS20 14-SD9112 940 810

Code Reports

Part IAPMO UES ER ICC-ES ESR City of Los Angeles State of Florida
HTSSee specific model numbers for code listings.
HTS16 ER-102 ER-124 ESR-2613 ESR-2523 RR25489 RR25718 FL10456 FL13872
HTS20 ER-102 ER-124 ESR-2613 ESR-2523 RR25489 RR25718 FL10456 FL13872
HTS20Z ER-102 ER-124 ESR-2613 ESR-2523 RR25489 RR25718
HTS24 ER-102 ER-124 ESR-2613 ESR-2523 RR25489 RR25718 FL10456 FL13872
HTS30 ER-102 ER-124 ESR-2613 ESR-2523 RR25489 RR25718 FL10456 FL13872
HTS30C ER-102 ER-124 ESR-2613 ESR-2523 RR25489 RR25718 FL10456 FL13872
LTSSee specific model numbers for code listings.
LTS12 ER-102 ER-124 ESR-2613 ESR-2523 RR25718 RR25489 FL10456 FL13872
LTS12SS
LTS16 ER-102 ER-124 ESR-2613 ESR-2523 RR25718 RR25489 FL10456 FL13872
LTS18 ER-102 ER-124 ESR-2613 ESR-2523 RR25718 RR25489 FL10456 FL13872
LTS18SS
LTS20 ER-102 ER-124 ESR-2613 ESR-2523 RR25718 RR25489 FL10456 FL13872
MTSSee specific model numbers for code listings.
MTS12 ER-102 ER-124 ESR-2613 ESR-2523 ESR-3096 RR25718 RR25489 RR25910 FL10852 FL13872
MTS12Z ER-102 ER-124 ESR-2613 ESR-2523 ESR-3096 RR25718 RR25910
MTS16 ER-102 ER-124 ESR-2613 ESR-2523 ESR-3096 RR25718 RR25489 RR25910 FL10852 FL13872
MTS16Z ER-102 ER-124 ESR-2613 ESR-2523 ESR-3096 RR25718 RR25489 RR25910
MTS18 ER-102 ER-124 ESR-2613 ESR-2523 RR25718 RR25489 FL10852 FL13872
MTS20 ER-102 ER-124 ESR-2613 ESR-2523 ESR-3096 RR25718 RR25489 RR25910 FL10852 FL13872
MTS20SS
MTS20Z ER-102 ER-124 ESR-2613 ESR-2523 ESR-3096 RR25718 RR25489 RR25910
MTS24C ER-102 ER-124 RR25489 FL10852 FL13872
MTS30 ER-102 ER-124 ESR-2613 ESR-2523 RR25718 RR25489 FL10852 FL13872
MTS30C ER-102 ER-124 RR25489 FL10852 FL13872
MTS30Z ER-102 ER-124 ESR-2613 ESR-2523 RR25718 RR25489

ESR-2523 is an Index of many of Simpson Strong-Tie Stamped and Welded Cold-formed Steel Products for Wood or Cold-formed Steel Construction
