HLPC/HLGPC Heavy Angles and Gussets

HLPC/HLGPC

Versatile angle gussets and heavy angles promote standardization and construction economy, and are compatible with Simpson Strong-Tie® structural hardware.

Material

  • See table

Finish

  • Black powder coat, Simpson Strong-Tie® gray paint and also available galvanized

Options

  • Gussets may be added to HL models when L ≥ 5". Specify G after numbers in model number, as in HL46GPC.

Ordering Information

  • All products with PC suffix are black powder coat
  • 7-gauge products without the PC suffix are galvanized
  • 3-gauge products without the PC suffix are Simpson Strong-Tie gray paint

Related Literature

Wood Construction Connectors Catalog
C-C-2017
Complete product and application information, as well as load tables and installation information, for more than 3,000 wood-to-wood, wood-to-concrete and wood-to-masonry connectors.
Catalog

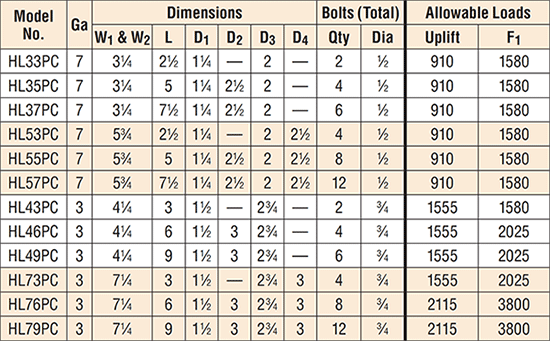

Load Tables

Typical HL55PC Installation
  1. Allowable loads have been increased 60% for wind or earthquake loading. No further increase allowed; reduce where other loads govern.
  2. Use 0.85 times table load for Hem Fir.
  3. Parts should be centered on the face of the member to which they are attached.
  4. Wood members for the '3' and '5' series must have a minimum width and thickness of 3 1/2" for table loads to apply.
  5. Wood members for the '4' and '7' series must have a minimum width and thickness of 5 1/8" for table loads to apply.
  6. Parts must be used in pairs. Lag bolts of equal diameter (minimum 5" long) may be substituted for machine bolts into beam with no reduction in load.

Code Reports

Part IAPMO UES ER ICC-ES ESR City of Los Angeles State of Florida
HL No code listing. Please contact us for test data.
HL33No code listing: Please contact us for test data.
HL33PCNo code listing: Please contact us for test data.
HL35No code listing: Please contact us for test data.
HL35PCNo code listing: Please contact us for test data.
HL37No code listing: Please contact us for test data.
HL37PCNo code listing: Please contact us for test data.
HL43No code listing: Please contact us for test data.
HL43PCNo code listing: Please contact us for test data.
HL46No code listing: Please contact us for test data.
HL46PCNo code listing: Please contact us for test data.
HL49No code listing: Please contact us for test data.
HL49PCNo code listing: Please contact us for test data.
HL53No code listing: Please contact us for test data.
HL53PCNo code listing: Please contact us for test data.
HL55No code listing: Please contact us for test data.
HL55PCNo code listing: Please contact us for test data.
HL57No code listing: Please contact us for test data.
HL57PCNo code listing: Please contact us for test data.
HL73No code listing: Please contact us for test data.
HL73PCNo code listing: Please contact us for test data.
HL76No code listing: Please contact us for test data.
HL76PCNo code listing: Please contact us for test data.
HL79No code listing: Please contact us for test data.

Drawings

Part Orthographic Perspective
HLNone None
HL33
HL33 Front View
DWG DXF
HL33 Right View
DWG DXF
HL33 Top View
DWG DXF
None
HL33PC
HL33 Front View
DWG DXF
HL33 Right View
DWG DXF
HL33 Top View
DWG DXF
None
HL35
HL35 Front View
DWG DXF
HL35 Right View
DWG DXF
HL35 Top View
DWG DXF
None
HL35PC
HL35 Front View
DWG DXF
HL35 Right View
DWG DXF
HL35 Top View
DWG DXF
None
HL37None None
HL37PCNone None
HL43None None
HL43PCNone None
HL46None None
HL46PCNone None
HL49None None
HL49PCNone None
HL53
HL53 Front View
DWG DXF
HL53 Right View
DWG DXF
None
HL53PC
HL53 Front View
DWG DXF
HL53 Right View
DWG DXF
None
HL55
HL55 Front View
DWG DXF
HL55 Right View
DWG DXF
HL55 Top View
DWG DXF
None
HL55PC
HL55 Front View
DWG DXF
HL55 Right View
DWG DXF
HL55 Top View
DWG DXF
None
HL57None None
HL57PCNone None
HL73None None
HL73PCNone None
HL76None None
HL76PCNone None
HL79None None
