LSC Adjustable Stringer Connector

LSC

On This Page

The LSC adjustable stair-stringer connector offers a versatile, concealed connection between the stair stringer and the carrying header or rim board while replacing costly framing. Field slopeable to all common stair stringer pitches, the LSC connector is suitable for either solid or notched stringers.

Key Features

  • Replaces additional framing and toe-nailing.
  • May be installed flush with the top of the carrying member (typically suitable for 2x10 or 2x12 header / rim board) or lower on the face (typically suitable for a 2x12 header / rim board).
  • Interchangeable for left or right applications.
  • LSCZ features a ZMAX® coating for additional corrosion protection. Suitable for interior and some exterior applications. LSCSS is made from stainless steel for higher exposure environments. See Corrosion Information.

Material

  • 18 gauge

Finish

  • LSCZ — ZMAX coating; LSCSS — stainless steel

Installation

  • Use all specified fasteners; see table.
  • Before fastening, position the stair stringer with the LSC on the carrying member to verify where the bend should be located.
  • The fastener that is installed into the bottom edge of the stringer must go into the second-to-last hole.
  • When installed on 1 5/16" LVL or a 1 1/4" LSL stringer, additional items that will not affect the structural performance of the LSC, but should be considered, include the following:
    — LSC stringer flange will protrude 1/4" from face of stringer. As such, it is recommended the LSC be installed with the tabs positioned to the outside of the stringer.
    — 1 1/2" fasteners installed into 1 1/4" LSL stringer will protrude from the opposite side.

Related Literature

Wood Construction Connectors 2019-2020
C-C-2019
A catalog including new product information as well as any applicable specification and installation instructions for wood-to-wood and wood-to-concrete structural connectors.
Catalog
Conectores para la construcción con madera 2019–2020
C-C-2019SP
El catálogo incluye información sobre nuevos productos, así como especificaciones e instrucciones de instalación aplicables para conectores estructurales de madera a madera y de madera a concreto.
Catalog
Deck Connection and Fastening Guide
F-DECKCODE20
A guide to recognizing deck deficiencies and building or retrofitting safer, longer-lasting outdoor decks, with 2018 IBC and IRC code-compliant solutions for using the latest connectors and fasteners.
Product Guide
Do Your Decks Meet Code?
DIY-DECKPATIO18
A tearpad showing deck connections on one side and patio cover system connections on the other.
Flier
A Complete Connector System for Building Decks
DIY-DCKPTIOCA20
A tearpad for Canada showing on one side the hardware needed for a deck system, and on the other side the hardware needed for a patio cover system.
Flier
Un système de connexion complet pour la construction de terrasses
DIY-DCKPTOCA20F
Un étui à deux faces pour le Canada présentant le matériel nécessaire pour un système de terrasse et un système d’abri de terrasse. Des recommandations de produits plus récentes sont incluses.
Flier
Connector Selector Guide for Residential Construction For Use with LP Building Solutions Products
CSG-LPUS20
A 12-page guide that lists popular options for Simpson Strong-Tie hangers used with engineered wood products manufactured by LP Building Solutions.
Connector Selection Guide
Connector Selector Guide for Residential Construction for Use with Nordic Structures Products
CSG-NIUS20
A 12-page guide that lists popular options for Simpson Strong-Tie hangers used with engineered wood products manufactured by Nordic Structures.
Connector Selection Guide
Connector Selector Guide for Residential Construction for Use with LP Building Solutions Products - Limit States Design
CSG-LPCAN20
A 12-page Canadian guide that lists popular options for Simpson Strong-Tie hangers used with engineered wood products manufactured by LP Building Solutions.
Connector Selection Guide
Connector Selector Guide for Residential Construction for Use with Nordic Structures Products - Limit States Design
CSG-NICAN20
A 12-page Canadian guide that lists popular options for Simpson Strong-Tie hangers used with engineered wood products manufactured by Nordic Structures.
Connector Selection Guide

Load Tables

    These products are available with additional corrosion protection. Additional products on this page may also be available with this option, check with Simpson Strong-Tie for details.

    For stainless-steel fasteners, see Fastener Types and Sizes Specified for Simpson Strong-Tie Connectors.

    Many of these products are approved for installation with Strong-Drive® SD Connector screws.

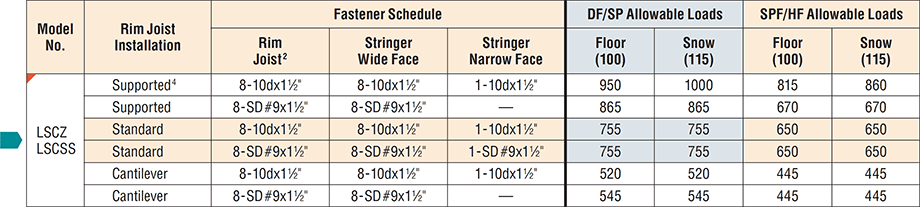

LSC Adjustable Stringer Connector Load Table
  1. When installed on minimum 1 5/16" LVL or minimum 1 1/4" LSL stringers, allowable loads for DF/SP shall apply.
  2. When cross-grain bending or cross-grain tension cannot be avoided in the members, mechanical reinforcement to resist such forces shall be considered by the Designer.
  3. #9 x 1 1/2" Strong-Drive® SD Connector screws may be substituted for 0.148" x 1 1/2" nails to achieve published nail values if the extra screw is installed in the narrow face of the stringer.
  4. Strong-Drive SD screws are listed for use in the LSCZ.
  5. Fasteners: Nail dimensions in the table are diameter by length. SD screws are Simpson Strong-Tie® Strong-Drive® screws. For additional information, see Fastener Types and Sizes Specified for Simpson Strong-Tie Connectors.
