TA Staircase Angle

TA

On This Page

For use in structurally-sound staircase framing. The TA eliminates costly conventional notching.

Material

  • 12 gauge

Finish

  • TA9Z/TA10Z — ZMAX® coating; TA9SS/TA10SS — stainless steel. See Corrosion Information.

Ordering Information

  • May be ordered as kits with model numbers TA9ZKT and TA10ZKT. Each kit includes two ZMAX TAs and Simpson Strong-Tie® 1/4" x 1 1/2" Strong-Drive® SDS Heavy-Duty Connector screws.

Related Literature

Wood Construction Connectors Catalog
C-C-2017
Complete product and application information, as well as load tables and installation information, for more than 3,000 wood-to-wood, wood-to-concrete and wood-to-masonry connectors.
Catalog
Conectores para la construcción en madera 2017–2018
C-C-2017SP
Información completa de productos, de la aplicación, de las tablas de cargas y de la instalación, para más de 3,000 conectores de madera a madera, madera a concreto y concreto a mampostería.
Catalog
Deck Connection and Fastening Guide
F-DECKCODE17
A guide to recognizing deck deficiencies and building safer, stronger, longer-lasting outdoor deck structures.
Product Guide
Do Your Decks Meet Code?
DIY-DECKPATIO18
A tearpad showing deck connections on one side and patio cover system connections on the other.
Flier
A Complete Connector System for Building Decks
DIY-DCKPTIOCA17
A two-sided tearpad for Canada showing the hardware needed for a deck system on one side and the hardware needed for a patio cover system on the other side. Newer product recommendations included.
Flier
Un système de connexion complet pour la construction de terrasses
DIY-DCKPTOCA17F
Un étui à deux faces pour le Canada présentant le matériel nécessaire pour un système de terrasse et un système d’abri de terrasse. Des recommandations de produits plus récentes sont incluses.
Flier
Critical Deck Connections
S-DECKCONCTP18
An educational reference guide for DIY’ers about safe deck construction. The piece outlines the vital components of a deck constructed with a continuous load path in mind.
Flier
Assemblages essentiels d'une terrasse
S-DECKCONCTP18F
Un guide de référence à destination des bricoleurs pour construire des terrasses sûres. Le document décrit les composants essentiels d'une terrasse dotée d'un chemin de charge continu.
Flier

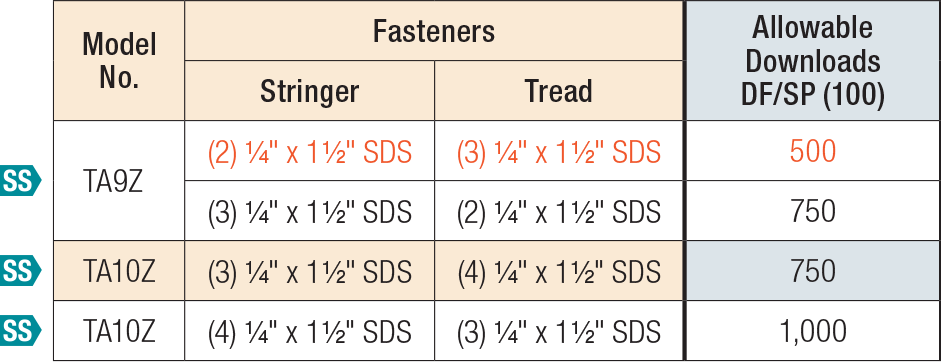

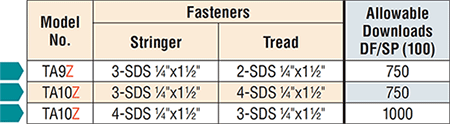

Load Tables

    These products are available with additional corrosion protection.

  1. Loads may be adjusted for other load durations according to the code.
  2. See Strong-Drive® SDS Heavy-Duty Connector screws information.

Code Reports

Part IAPMO UES ER ICC-ES ESR City of Los Angeles State of Florida
TASee specific model numbers for code listings.
TA10 No code listing. Please contact us for test data.
TA10SS No code listing. Please contact us for test data.
TA10ZNo code listing: Please contact us for test data.
TA10ZKT No code listing. Please contact us for test data.
TA9 No code listing. Please contact us for test data.
TA9SS No code listing. Please contact us for test data.
TA9ZNo code listing: Please contact us for test data.
TA9ZKT No code listing. Please contact us for test data.
TAZ No code listing. Please contact us for test data.
