SC Bypass Framing Slide-Clip Connector
Ideal for high-seismic areas, Simpson Strong-Tie® SC connectors are the optimal solution for slide-clip bypass framing. SC clips are often welded to the structure in high-seismic zones, but they also feature anchorage holes so that concrete screws or powder-actuated fasteners can be used to attach the clip to the structure. In addition to anchorage versatility, the SC clips include "No-Equal" stamps at the center of the slots to ensure proper shouldered screw placement. SC connectors are manufactured using heavy-duty 10- and 12-gauge steel to provide exceptional resistance to in-plane seismic load.
Key Features
- The clips come in lengths of 3 1/2", 6" and 8" for use with 3 5/8", 6" and 8" studs, respectively
- The maximum standoff distance is 1" for 3 5/8" studs and 1 1/2" for 6"and 8" studs
- Provides a full 3/4" of both upward and downward deflection
- Embossments in the bend line provide increased strength and stiffness in the F1 and F2 load directions, but are positioned towards the center of the clip so that 1 1/2"-long welds can be applied at the top and bottom of the clip
- Prepunched large-diameter anchor holes accommodate 1/4"-diameter concrete screws like the Simpson Strong-Tie Titen HD®
- Prepunched small-diameter anchor holes accommodate powder-actuated fasteners like the 0.157"-diameter Simpson Strong-Tie PDPAT or the #12 self-drilling Simpson Strong-Tie Strong-Drive® XL Large-Head Metal screw
- Precision-manufactured shouldered screws, provided with SC connectors, are designed to prevent overdriving and to ensure the clip functions properly
Installation
- Use the specified type and number of anchors.
- Use the specified number of XLSH78B1414 #14 shouldered screws (included). Install the screws in the slots adjacent to the "No-Equal" stamps.
- Use one shouldered screw per slot (maximum).
Related Literature
Ordering Information and Dimensions
| Model |
Ordering SKU |
Thickness mil (ga.) |
L (in.) |
A (in.) |
B (in.) |
| SC32-5/97 |
SC32-5/97-KT25 |
97 (12) |
3 1/2 |
7/8 |
1 1/4 |
| SC62-5/97 |
SC62-5/97-KT25 |
97 (12) |
6 |
1 1/8 |
1 1/2 |
| SC62-5/118 |
SC62-5/118-KT25 |
118 (10) |
6 |
1 1/8 |
1 1/2 |
| SC82-5/118 |
SC82-5/118-KT25 |
118 (10) |
8 |
1 5/8 |
1 1/2 |
| Note: Each box contains (25) connectors and enough shouldered screws for installation. |

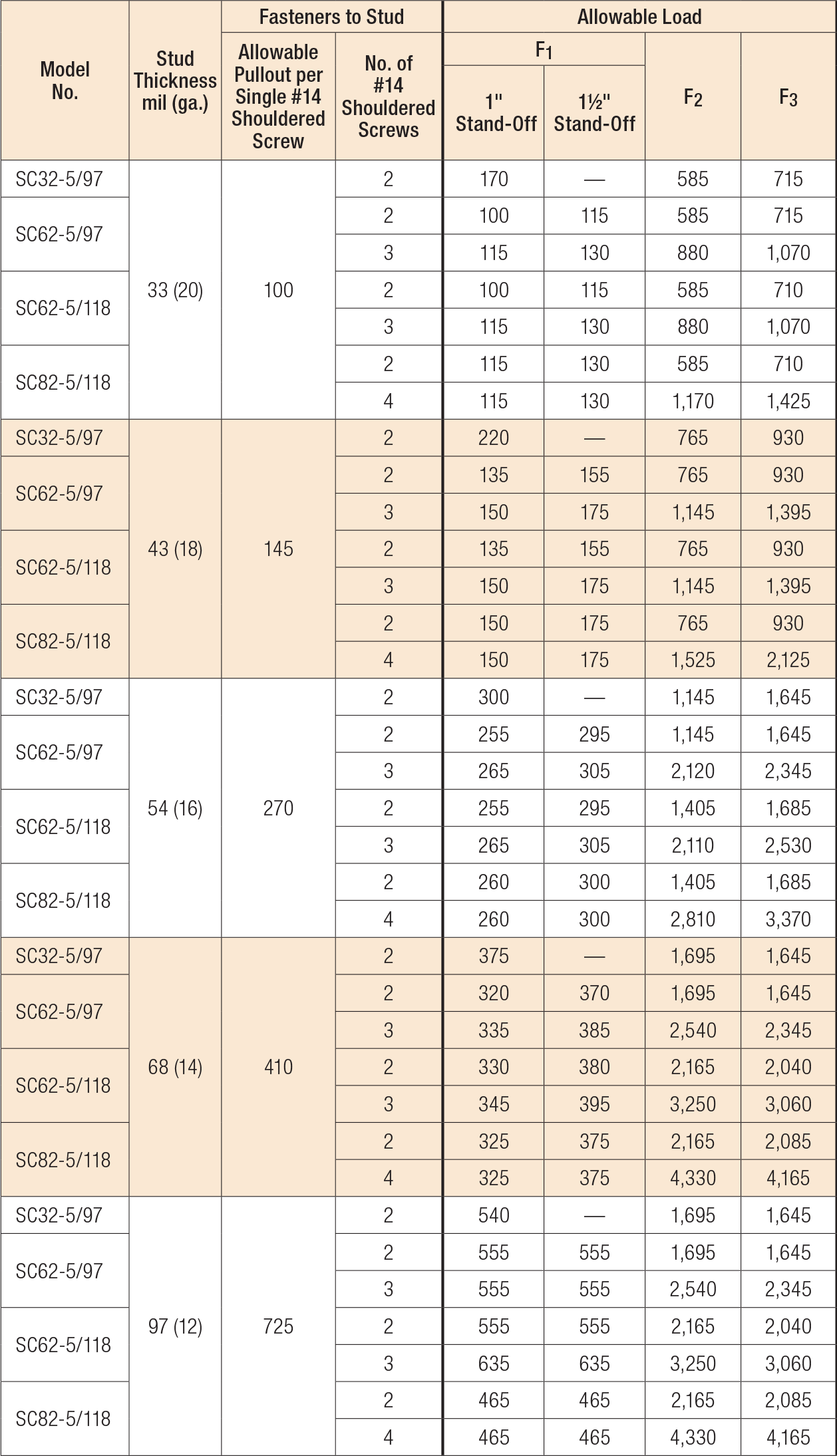

SC Allowable Connector Loads (lb.)
| Model No. |
Stud Thickness mil (ga.) |
Fasteners to Stud |
Allowable Loads |
| Allowable Pullout Per Single #14 Shouldered Screw |
No. of #14 Shouldered Screws |
F1 |
F2 |
F3 |
| 1" Stand-Off |
1 1/2" Stand-Off |
| SC32-5/97 |
33 (20) |
100 |
2 |
170 |
— |
585 |
715 |
| SC62-5/97 |
2 |
100 |
115 |
585 |
715 |
| 3 |
115 |
130 |
880 |
1,070 |
| SC62-5/118 |
2 |
100 |
115 |
585 |
710 |
| 3 |
115 |
130 |
880 |
1,070 |
| SC82-5/118 |
2 |
115 |
130 |
585 |
710 |
| 4 |
115 |
130 |
1,170 |
1,425 |
| SC32-5/97 |
43 (18) |
145 |
2 |
220 |
— |
765 |
930 |
| SC62-5/97 |
2 |
135 |
155 |
765 |
930 |
| 3 |
150 |
175 |
1,145 |
1,395 |
| SC62-5/118 |
2 |
135 |
155 |
765 |
930 |
| 3 |
150 |
175 |
1,145 |
1,395 |
| SC82-5/118 |
2 |
150 |
175 |
765 |
930 |
| 4 |
150 |
175 |
1,525 |
2,125 |
| SC32-5/97 |
54 (16) |
270 |
2 |
300 |
— |
1,145 |
1,645 |
| SC62-5/97 |
2 |
255 |
295 |
1,145 |
1,645 |
| 3 |
265 |
305 |
2,120 |
2,345 |
| SC62-5/118 |
2 |
255 |
295 |
1,405 |
1,685 |
| 3 |
265 |
305 |
2,110 |
2,530 |
| SC82-5/118 |
2 |
260 |
300 |
1,405 |
1,685 |
| 4 |
260 |
300 |
2,810 |
3,370 |
| SC32-5/97 |
68 (14) |
410 |
2 |
375 |
— |
1,695 |
1,645 |
| SC62-5/97 |
2 |
320 |
370 |
1,695 |
1,645 |
| 3 |
335 |
385 |
2,540 |
2,345 |
| SC62-5/118 |
2 |
330 |
380 |
2,165 |
2,040 |
| 3 |
345 |
395 |
3,250 |
3,060 |
| SC62-5/118 |
2 |
325 |
375 |
2,165 |
2,085 |
| 4 |
325 |
375 |
4,330 |
4,165 |
| SC32-5/97 |
97 (12) |
725 |
2 |
540 |
— |
1,695 |
1,645 |
| SC62-5/97 |
2 |
555 |
555 |
1,695 |
1,645 |
| 3 |
555 |
555 |
2,540 |
2,345 |
| SC62-5/118 |
2 |
555 |
555 |
2,165 |
2,040 |
| 3 |
635 |
635 |
3,250 |
3,060 |
| SC82-5/118 |
2 |
465 |
465 |
2,165 |
2,085 |
| 4 |
465 |
465 |
4,330 |
4,165 |
- SC Allowable Connector Loads are also limited by the SC Anchorage Load tables below. Use the minimum tabulated values from the connector and anchorage load tables as applicable.
- See illustration for fastener placement when using only two shouldered screws to the stud.
- Tabulated F1 loads are based on assembly tests with the load through the centerline of stud.Tested failure modes were due to screw pullout; therefore compare F1 against FP calculated per ASCE 7-10 Chapter 13 with aP=1.25 and Rp=1.0.
- F1 loads are based on maximum stand-off distances of 1" or 1 1/2" as shown. Other loads are applicable to a 1" stand-off for SC32 and 1" or 1 1/2" stand-off for SC62 and SC82.
- At the bend line, the gross allowable plastic moment in the F1 load direction for 97 mil (12 ga.) and 118 mil (10 ga.) SC connectors are 395 in.-lb. and 675 in.-lb., respectively.
- At a vertical slot, the net allowable plastic moment in the F1 load direction for 97 mil (12 ga.) and 118 mil (10 ga.) SC connectors are 257 in.-lb. and 439 in.-lb., respectively.
|

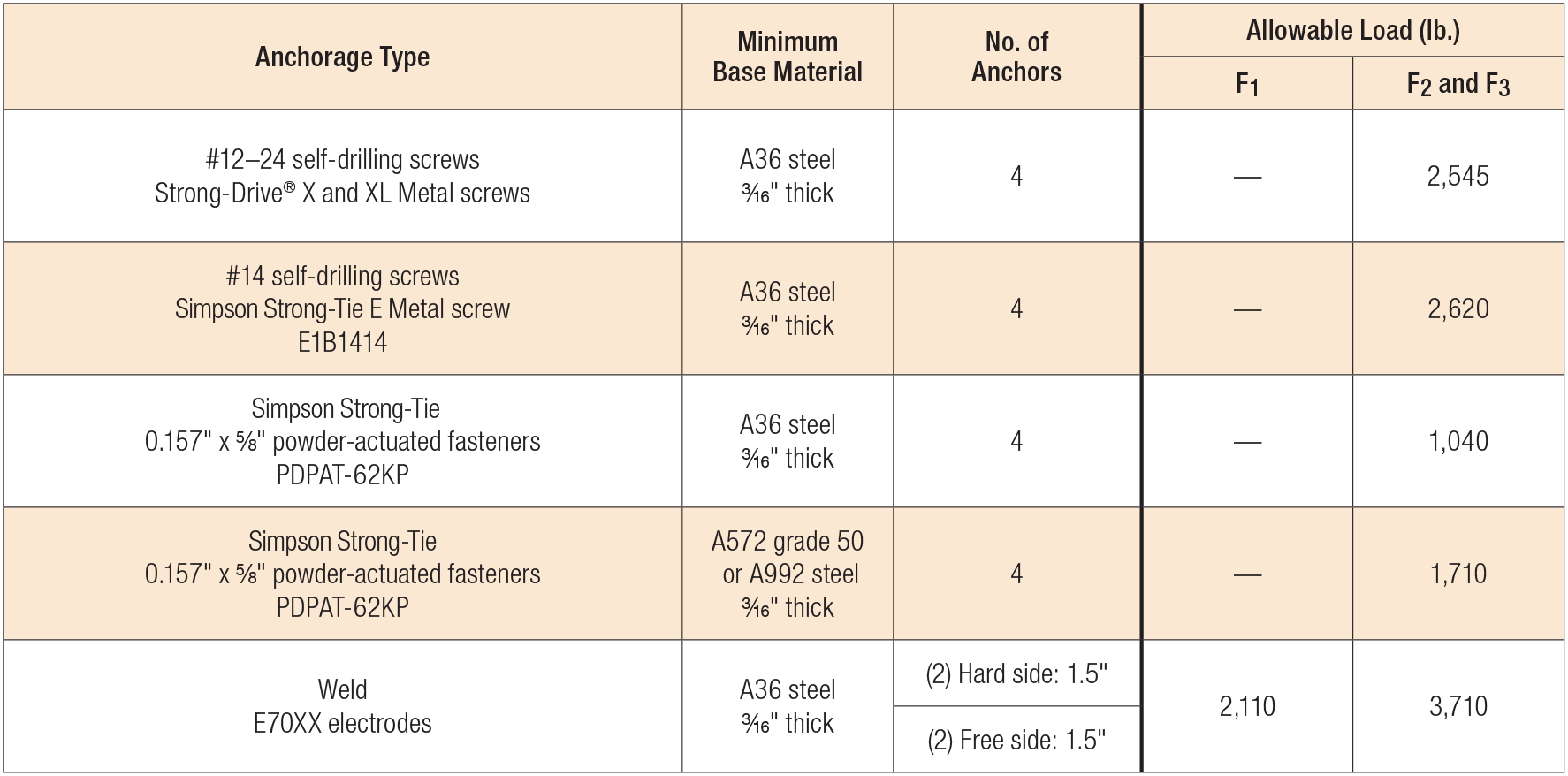

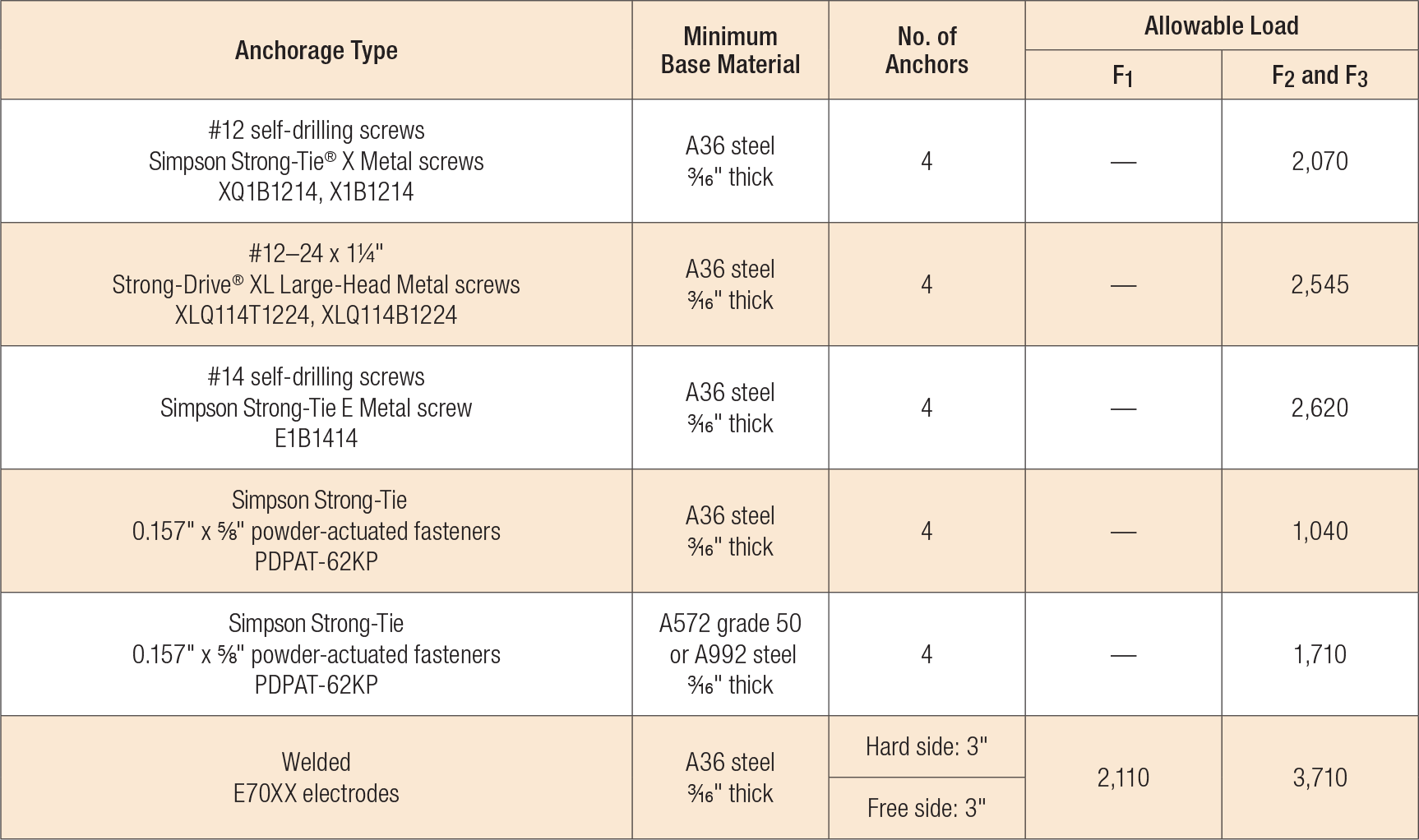

SC Allowable Anchorage Loads to Steel (lb.)
| Anchorage Type |
Minimum Base Material |
No. of Anchors |
Allowable Loads |
| F1 |
F2 and F3 |
| #12 Self-Drilling Screws Simpson Strong-Tie® X Metal Screws XQ1B1214, X1B1214 |
A36 Steel 3/16" thick |
4 |
— |
2,070 |
| Strong-Drive® XL Large-Head #12-24 x 1 1/4" Metal Screws XLQ114T1224, XLQ114B1224 |
A36 Steel 3/16" thick |
4 |
— |
2,545 |
| #14 Self-Drilling Screws Simpson Strong-Tie E Metal Screw E1B1414 |
A36 Steel 3/16" thick |
4 |
— |
2,620 |
| Simpson Strong-Tie 0.157" x 5/8" Powder-Actuated Fasteners PDPAT-62KP |
A36 Steel 3/16" thick |
4 |
— |
1,040 |
| Simpson Strong-Tie 0.157" x 5/8" Powder-Actuated Fasteners PDPAT-62KP |
A572 Gr. 50 or A992 Steel 3/16" thick |
4 |
— |
1,710 |
| Welded E70XX electrodes |
A36 Steel 3/16" thick |
Hard Side: 3" |
2,110 |
3,710 |
| Free Side: 3" |
- Allowable anchorage loads are also limited by the SC Connector Load Table above. Use the minimum tabulated values from the connector and anchorage load tables as applicable.
- Allowable loads for Simpson Strong-Tie PDPAT-62KP powder-actuated "tophat" fasteners also apply to alternate fasteners with a minimum shank of 0.157", a minimum head diameter of 0.300", a minimum allowable shear of 410 lb. and allowable tension of 260 lb. for A36 steel, and a minimum allowable shear of 420 lb. and allowable tension of 305 lb. for A572 Gr. 50 or A992 steel per ICC-ES ESR-2138. "Tophat" fasteners are recommended to ensure adequate clamping force and consistent installations.
- For screw fastener installation into steel backed by concrete, predrilling of both the steel and the concrete will be required. For predrilling, use a maximum 3/16" dia. drill bit.
|

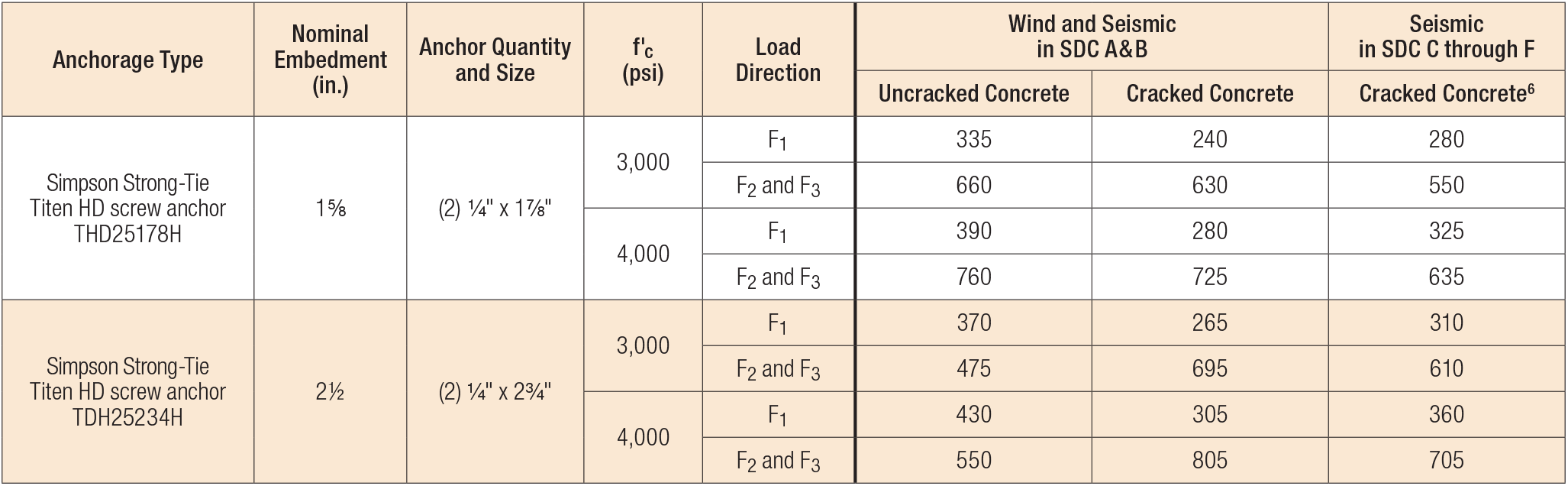

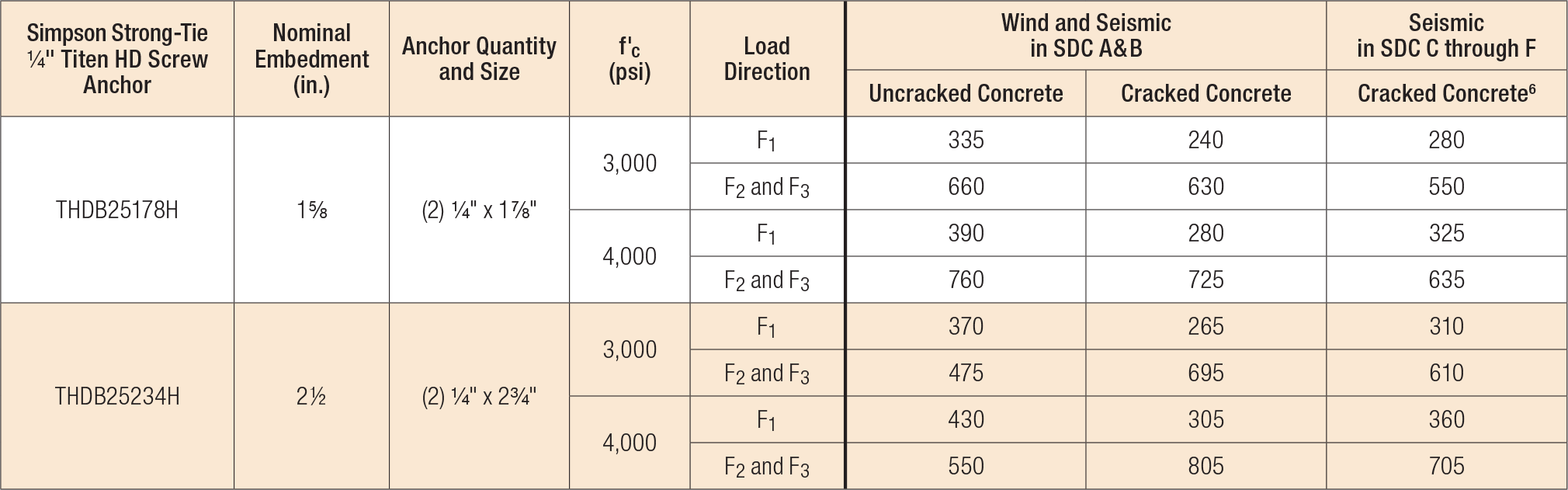

SC Allowable Anchorage Loads for Concrete (lb.)
| Simpson Strong-Tie 1/4" Titen HD Screw Anchor |
Nominal Embed (in.) |
Anchor Quantity and Size |
f'c (psi) |
Load Direction |
Wind and Seismic in SDC A and B |
Seismic in SDC C through F |
| Uncracked Concrete |
Cracked Concrete |
Cracked Concrete 6 |
| THDB25178H |
1 5/8 |
(2) 1/4" x 1 7/8" |
3,000 |
F1 |
335 |
240 |
280 |
| F2 and F3 |
660 |
630 |
550 |
| 4000 |
F1 |
390 |
280 |
325 |
| F2 and F3 |
760 |
725 |
635 |
| THDB25234H |
2 1/2 |
(2) 1/4" x 2 3/4" |
3,000 |
F1 |
370 |
265 |
310 |
| F2 and F3 |
475 |
695 |
610 |
| 4000 |
F1 |
430 |
305 |
360 |
| F2 and F3 |
550 |
805 |
705 |
- Allowable anchor capacities have been determined using ACI 318 Appendix D calculations with a minimum concrete compressive strength (f'c) of 3,000 and 4,000 psi in normal-weight concrete. Tabulated values shall be multiplied by a factor (λa) of 0.6 for sand light-weight concrete.
- Edge distance is assumed to be 1 1/2", and end distance is 2 5/8".
- Load values are for group anchors based on ACI 318, condition B, load factors from ACI 318 Section 9.2, no supplement edge reinforcement, Ψc, v = 1.0 for cracked concrete and periodic special inspection.
- Allowable Stress Design (ASD) values were determined by multiplying calculated LRFD capacities by a conversion factor, Alpha (α), of 0.70 for seismic load and 0.6 for wind loads. ASD values for other combinations may be determined using alternate conversion factors.
- Tabulated allowable ASD loads for Wind and Seismic in SDC A and B are based on using wind conversion factors and may be increased by 1.17 for SDC A and B only.
- Design loads shall include the over-strength factor per ASCE7 Section 12.4.3. For fasteners in exterior wall connection systems, Ωo = 1.5 per Table 13.5-1.
- Allowable loads for F1 are based on the governing loading direction which is toward the end of slab.
- For anchor subjected to both tension and shear loads, it shall be designed to satisfy the following:
- For Na / Nall ≤ 0.2, the full allowable load in shear is permitted.
- For Va / Vall ≤ 0.2, the full allowable load in tension is permitted.
- For all other cases: Na / Nall + Va / Vall ≤ 1.2 where:
Na = Applied ASD tension load
Nall = Allowable F2 or F3 load from the SC Allowable Anchorage Loads for Concrete table
Va = Applied ASD shear load
Vall = Allowable F1 load from the SC Allowable Anchorage Loads for Concrete table
- Tabulated allowable loads are based on anchorage only. The capacity of the connection system shall be the minimum of the allowable anchorage load and the SC Allowable Connector Loads.
|
Code Reports
| Part | IAPMO UES ER | ICC-ES ESR | City of Los Angeles | State of Florida |
|
SC32-5/97 | No code listing: Please contact us for test data. |
|
SC62-5/118 | No code listing: Please contact us for test data. |
|
SC62-5/97 | No code listing: Please contact us for test data. |
|
SC82-5/118 | No code listing: Please contact us for test data. |
