SSB Bypass Framing Slide-Clip Strut Connector

SSB

On This Page

The SSB connector is a versatile strut connector that is commonly used at the bottom of a steel beam to accommodate large standoff conditions. It accommodates 1" of upward and 1" of downward movement.

Material

  • 54 mil (16 ga.)

Finish

  • Galvanized (G90)

Installation

  • Use the specified type and number of anchors.
  • Use the specified number of XLSH34B1414 #14 shouldered screws (included). Install shouldered screws in the slots adjacent to the “No-Equal” stamp.
  • Use a maximum of 1 screw per slot.
  • If the SSB intrudes on interior space, it can be trimmed. The trimmed part shall allow an edge distance from the center of the nearest anchor to the end of the trimmed part of 1/2" or greater.

Ordering Information

SSB3.518-KT contains:

  • Box of 25 connectors
  • (83) XLSH34B1414 #14 shouldered screws

Note: Replacement #14 shouldered screws for SSB connectors are XLSH34B1414-RP83

Related Literature

Connectors for Cold-Formed Steel Construction
C-CF-2017
A catalog including specifications, load tables and installation illustrations for our cold-formed steel connectors and clips.
Catalog
Conectores para construcción de acero moldeado en frío
C-CF-2017SP
Un catálogo que incluye especificaciones, tablas de carga e ilustraciones de instalación para nuestras abrazaderas y conectores de acero moldeado en frío.
Catalog
SSB Bypass Framing Slide-Clip Strut Connector
T-CF-SSB1SB16
Submittal/substitution request for the SSB bypass framing slide-clip strut connector for cold-formed steel construction.
Submittal
Submittal/Substitution Request Cover
T-CF-CWCSUB16
This editable cover sheet allows for the easy completion of submittal/substitution request forms for Simpson Strong-Tie cold-formed steel connectors.
Submittal

Load Tables

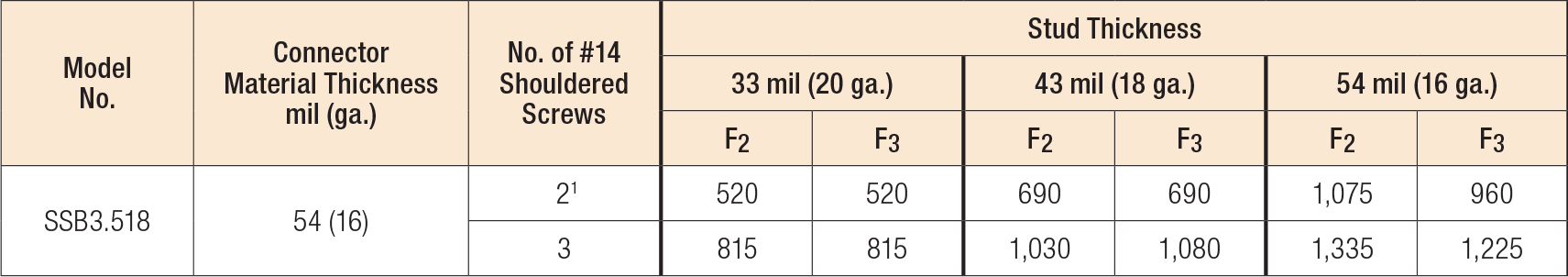

SSB Allowable Connector Loads

Load Table - SSB Allowable Connector Loads
  1. When the SSB connector is used with two shouldered screws, the screws may be installed in any two slots.
  2. Allowable loads are based on clips installed with (3) #12-24 screws in the anchor leg. For other anchorage installations, the capacity of the connection system will be the minimum of the tabulated value and the allowable load from the SSB Allowable Anchorage Loads table below.
  3. For LRFD design strengths, reference the SCB Service Load Limits, LRFD Design Strengths and Nominal Strengths table below.

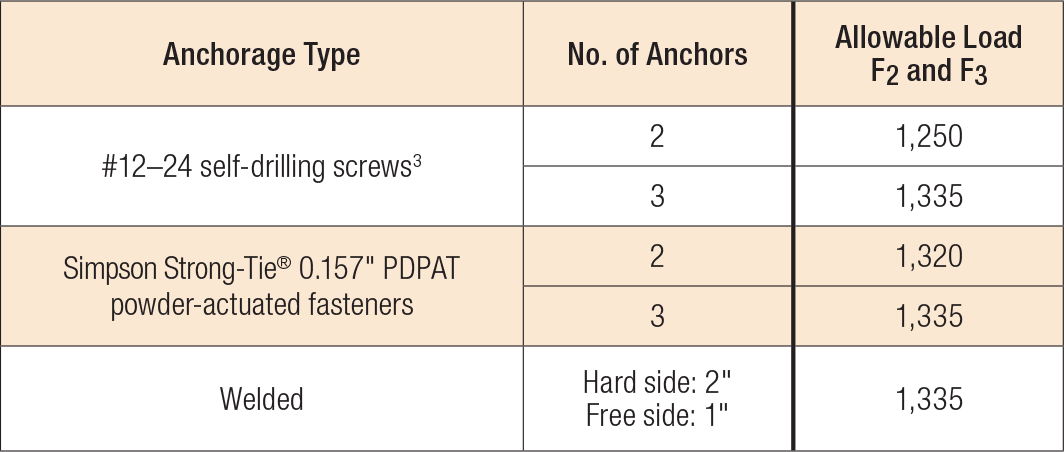

SSB Allowable Anchorage Loads

Load Table - SSB Allowable Anchorage Loads
  1. For additional important information, see General Information.
  2. Allowable loads are for clip anchorage only. The capacity of the connection system will be the minimum of the tabulated value and the allowable load from the SSB Allowable Connector Loads table above.
  3. See Fastening Systems and Direct Fastening for more information on Simpson Strong-Tie fasteners.

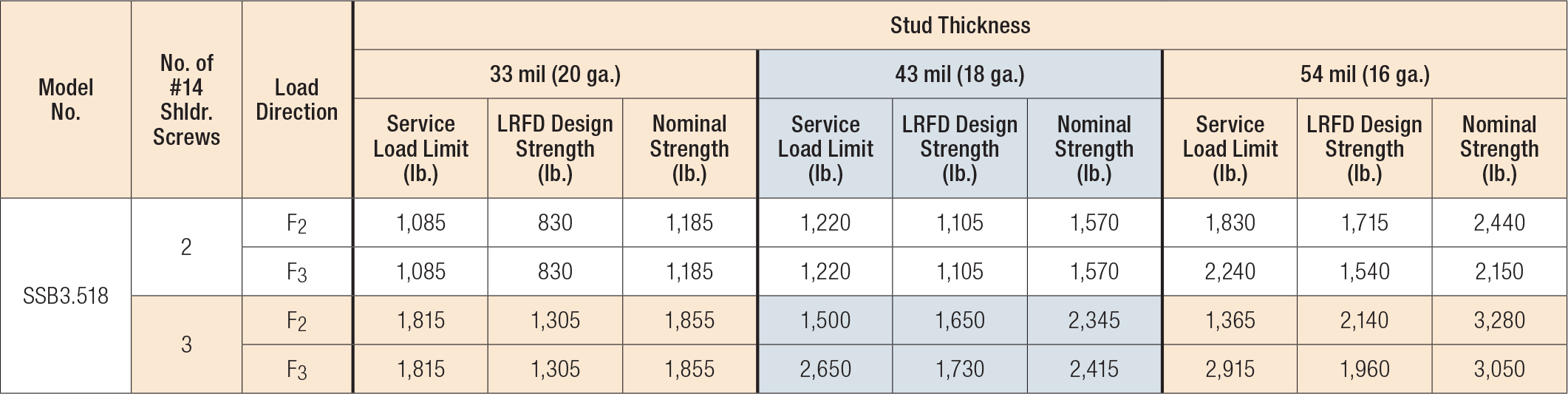

SSB Bypass Framing Slide-Clip Strut Connector — Service Load Limits, LRFD Design Strengths and Nominal Strengths

Load Table - SSB Bypass Framing Slide-Clip Strut Connector - Service Load Limits, LRFD Design Strengths and Nominal Strengths
  1. Tabulated values are for the connector and attachment to the stud-wall framing. The assembly strengths are the minimum of those listed and the anchorage values listed in the Anchor Values table below.
  2. Service Load Limit is the load at 1/8" deflection for use in evaluating the performance under service-level loads.
  3. LRFD Design Strength is the Nominal Strength multiplied by a resistance factor, φ.
  4. Nominal Strength is defined in AISI S100-07.

Anchor Values (lb.) in the F2 and F3 Direction for SCB, FCB, MSCB and SSB

Load Table - Anchor Values (lb.) in the F2 and F3 Direction for SCB, FCB, MSCB and SSB
  1. Tabulated values are for the anchorage only. The assembly strengths are the minimum of those listed above and the connector capacity and attachment to the stud-wall framing listed in the SSB Service Load Limits, LRFD Design Strengths and Nominal Strengths table above.
  2. LRFD Design Strength is the Nominal Strength multiplied by a resistance factor, φ.
  3. Nominal Strength is defined in AISI S100-07.
  4. For the Service Load Limit, use the values listed for the connectors in the SSB Service Load Limits, LRFD Design Strengths and Nominal Strengths table above.

Curtain-Wall Connector Stand-Off Distances

  1. The stand-off is the distance from the interior flange of the stud to the face of the supporting structure. All dimensions assume fasteners are installed a minimum of 1/2" from the edge of stud, and the connector does not extend beyond the exterior flange of the stud; "—" designates conditions where fastener pattern will not fit on stud.
  2. A tabulated maximum stand-off of 12 1/4" is based on three anchors. For two anchors, maximum stand-off is 13 1/4".
  3. A tabulated maximum stand-off of 11" is based on three anchors. For two anchors, maximum stand-off is 12".
  4. For FCB fixed connectors, minimum indicates fill all round holes, and maximum indicates fill all round and triangle holes.
  5. See fastener patterns in the image gallery.

Code Reports

Part IAPMO UES ER ICC-ES ESR City of Los Angeles State of Florida
SSBSee specific model numbers for code listings.
SSB3.518 ER-102 ER-238 RR25943 FL13872

Drawings

Part Orthographic Perspective
SSB3.518-KT
SSB3.518-KT Front View
DWG DXF
SSB3.518-KT Left View
DWG DXF
SSB3.518-KT Top View
DWG DXF
SSB3.518-KT Perspective View
DWG DXF
