LRUZ Face-Mount Rafter Hanger

LRUZ

On This Page

The LRUZ offers an economic alternative for those applications requiring a sloped hanger for rafter-to-ridge connections. Used with solid sawn rafters, the LRUZ’s unique design enables the hanger to be installed either before or after the rafter is in place. The field-adjustable seat helps improve job efficiency by eliminating mismatched angles in the field and lead times associated with special orders. The LRUZ offers comparable or better load capacity to other rafter hangers at a reduced cost while using fewer fasteners.

Key Features

  • The open design and ability to field-adjust the slope make the LRUZ ideal for both retrofit or new applications.
  • Accommodates roof pitches from 0:12 to 14:12.
  • Slopes up or down to 45° (12:12). For downward slopes greater than 45° up to 49° (14:12), allowable downloads are 0.85 of table loads.
  • For added versatility, the fasteners on the face of the hanger are placed high, enabling the bottom of the rafter to hang below the ridge beam (see “Max. C1” dimension in Standard Installation table).
  • Can be installed using nails or Strong-Drive® SD Connector screws.

Material

  • 18 gauge

Finish

  • ZMAX® coating (G-185); see Corrosion Information

Installation

  • Use all specified fasteners; see General Notes
  • Joist fasteners must be installed at an angle through the rafter or joist into the header to achieve the table loads
  • See Alternate Installation table for retrofit applications

Related Literature

Product Information Tables

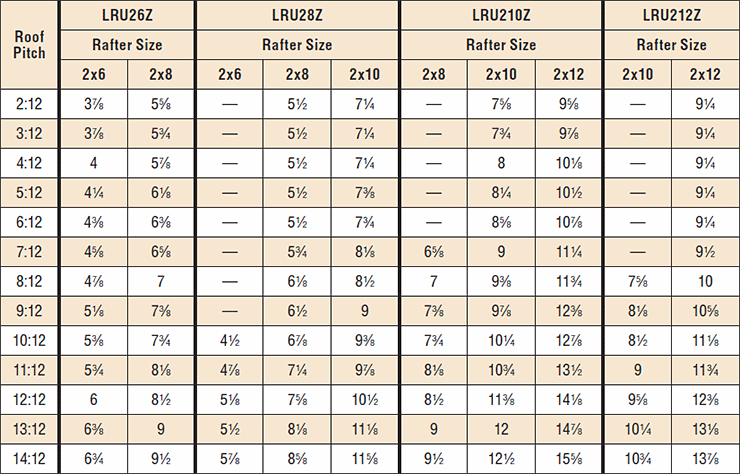

Minimum Ridge Beam Depth (in.)

LRUZ Product Table
  1. Minimum ridge beam depths shown assume that the rafter and the ridge beam are flush at the top.
  2. Minimum ridge beam depths have been determined to ensure the maximum C1 dimension for the LRU is not exceeded. Deeper ridge beams may be required to support the rafter loads as determined by the Designer.
  3. Per the 2012/2015/2018 IRC Section R802.3 the ridge is required to be not less in depth than the cut end of the rafter unless the ridge is designed as a beam.
  4. Slopes greater than 12:12 are download only.
LRUZ Installation on Minimum Depth Beam
Installation on Minimum Depth Beam
(See footnote 3 at left)

Load Tables

Standard Installation

    These products are available with additional corrosion protection. Additional products on this page may also be available with this option, check with Simpson Strong-Tie for details.

    Many of these products are approved for installation with Strong-Drive® SD Connector screws.

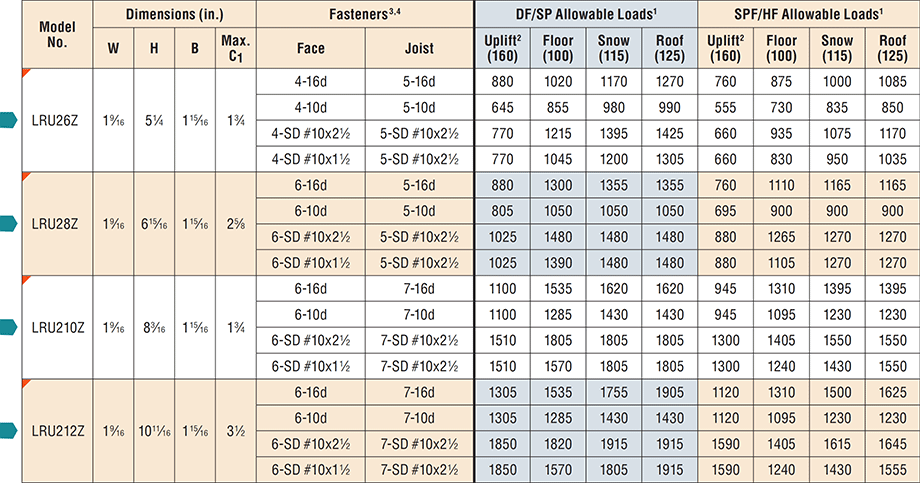

LRUZ Standard Installation Load Table
  1. Uplift loads have been increased for earthquake or wind loading with no further increase allowed. Reduce where other loads govern.
  2. Allowable loads are based on a minimum 3" carrying member. For single 2x carrying members, use 0.148" x 1 1/2" nails in the face and 0.148" x 3" in the joist, and reduce the allowable load to 0.81 of the tabulated value for 0.148" x 3" nails. Alternatively, use #10 x 1 1/2" Strong-Drive® SD Connector screws in the face and #10 x 2 1/2" SD Connector screws in the joist as shown in the table.
  3. Fasteners: Nail dimensions in the table are listed diameter by length. For additional information, see Fastener Types and Sizes Specified for Simpson Strong-Tie Connectors.
  4. Fasteners: SD screws are Simpson Strong-Tie® Strong-Drive® screws. See fastener information.
LRU28Z Standard Installation
Typical LRUZ Installation

Alternate Installation for Retrofit Applications

When an existing roof deck prevents the horizontal installation of fasteners, #10 x 2 1/2" Strong-Drive® SD Connector screws may be installed sloped upward to match the roof pitch (49° max.). Use table values for an installation with 0.148" x 3" nails when Strong-Drive SD Connector screws are sloped. Nails may not be installed sloped upward.

Alternate Installation for Retrofit

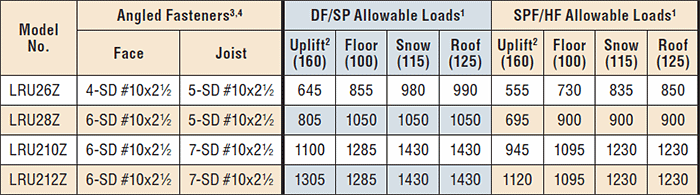

LRUZ Alternate Installation for Retrofit Load Table
  1. Uplift loads have been increased for earthquake or wind loading with no further increase allowed. Reduce where other loads govern.
  2. Allowable loads are based on a minimum 3"-thick carrying member.
  3. Fasteners may be angled upward a maximum of 49°.
  4. Fasteners: SD screws are Simpson Strong-Tie® Strong-Drive® screws. See fastener information.
LRUZ Alternate Installation
Alternate Installation for Retrofit Applications

Code Reports

Part IAPMO UES ER ICC-ES ESR City of Los Angeles State of Florida
LRU210Z ESR-2551 ESR-2523 FL10447
LRU212Z ESR-2551 ESR-2523 FL10447
LRU26Z ESR-2551 ESR-2523 FL10447
LRU28Z ESR-2551 ESR-2523 FL10447
LRUZSee specific model numbers for code listings.

ESR-2523 is an Index of many of Simpson Strong-Tie Stamped and Welded Cold-formed Steel Products for Wood or Cold-formed Steel Construction

Drawings

Part Orthographic Perspective
LRU210Z
LRU210Z Front View
DWG DXF
LRU210Z Left View
DWG DXF
LRU210Z Top View
DWG DXF
LRU210Z Perspective View
DWG DXF
LRU212Z
LRU212Z Front View
DWG DXF
LRU212Z Left View
DWG DXF
LRU212Z Top View
DWG DXF
LRU212Z Perspective View
DWG DXF
LRU26Z
LRU26Z Front View
DWG DXF
LRU26Z Left View
DWG DXF
LRU26Z Top View
DWG DXF
High Wind Resistant Construction Detail D124: Combined Connector - HWRC D124 Hanger Uplift Considerations Combined Connector Example
DWG DXF
LRU26Z Perspective View
DWG DXF
LRU28Z
LRU28Z Front View
DWG DXF
LRU28Z Left View
DWG DXF
LRU28Z Top View
DWG DXF
LRU28Z Perspective View
DWG DXF
