LUC/LU/U/HU/HUC Standard Joist Hangers

LUC/LU/U/HU/HUC

On This Page

LUCZ concealed-flange hanger available for 2x6, 2x8, 2x10 and 2x12 lumber. Ideal for end of ledger/header or post conditions, the LUCZ also provides cleaner lines for exposed conditions such as overhead decks.

See hanger tables. See Hanger Options for hanger modifications, which may result in reduced loads.

LU — Value engineered for strength and economy. Precision-formed — engineered for installation ease and design value.

U — The standard U hanger provides flexibility of joist to header installation. Versatile fastener selection with tested allowable loads.

HU/HUC — Most models have triangle and round holes. To achieve maximum loads, fill both round and triangle holes with common nails. These heavy-duty connectors are designed for schools and other structures requiring additional strength, longevity and safety factors.

Material

  • See tables

Finish

  • Galvanized. Some products available in stainless steel or ZMAX® coating. See Corrosion Information.

Installation

  • Use all specified fasteners. See General Notes.
  • HU/HUC — Can be installed filling round holes only, or filling round and triangle holes for maximum values.
  • Joists sloped up to 1/4:12 achieve table loads.
  • For installations to masonry or concrete, see HU/HUC/HSUR/L.
  • HU/HUC hangers can be welded to a steel member. Allowable loads are the lesser of the values in the hanger tables or the weld capacity — refer to technical bulletin HU/HUC Welded onto Steel Members (T-HUHUC-W).
  • When nailing into carrying member's end grain, the allowable load is adjusted by a factor of 0.67.

Options

  • For both flanges concealed, order HUC.
  • The HU is available with the A flanges straight at table loads listed.
  • For low-cost, code approved 45° skewed hangers, see SUR/SUL.
  • For field-adjustable hangers, see LSSJ, LSU, LRUZ and LSSU.
  • See table-modifications table for available options and associated load capacities for U and HU hangers.
  • For ease of ordering, refer to technical bulletin U/HU Hanger Special Order Worksheet (T-U-HU-WS).

Product Notes

  • Model configurations may differ from those shown. Some HU models do not have triangle holes. Contact Simpson Strong-Tie.

Related Literature

Product Information Tables

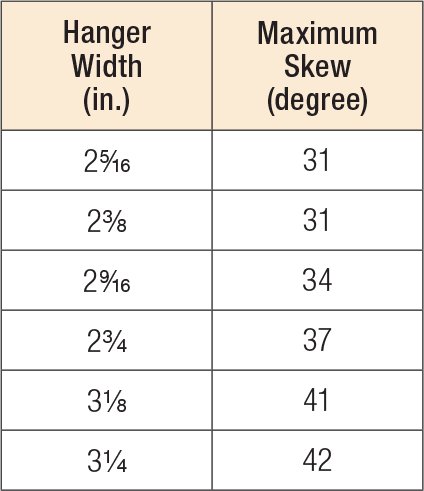

Maximum Skew Degree for Skewed HUC Hangers

  1. Widths greater than 3 1/4" maximum skew is 45°.
Top View U Hanger Skewed Right
Top View U Hanger Skewed Right < 51° (Square cut)

Load Tables

See Hanger Options for hanger modifications, which may result in reduced loads.

Load Values with Nails

See Hanger tables

Load Values with Strong-Drive® SD Connector Screws
Model No. Fasteners Allowable Loads
Face Joist DF/SP SPF/HF
Uplift(160) Floor (100) Snow (115) Roof (125) Uplift (160) Floor (100) Snow (115) Roof (125)

    These products are available with additional corrosion protection. Additional products on this page may also be available with this option, check with Simpson Strong-Tie for details.

LU24 4-SD9112 2-SD9112 340 685 725 725 290 450 515 560
LU26 6-SD9112 4-SD9112 915 1025 1030 1030 715 670 775 840
LUC26Z 6-SD9112 4-SD9112 865 1025 1180 1285 715 670 775 840
LUC26Z 6-SD10112 4-SD10112 915 1040 1195 1300 790 830 950 1035
LU28 8-SD9112 6-SD9112 995 1370 1380 1380 855 895 1030 1120
LU210 10-SD9112 6-SD9112 1150 1710 1965 2010 990 1120 1290 1400
LUC210Z 10-SD9112 6-SD9112 1605 1710 1965 2030 1075 1120 1290 1400
LUC210Z 10-SD10112 6-SD10112 1580 1730 1990 2165 1325 1380 1585 1725

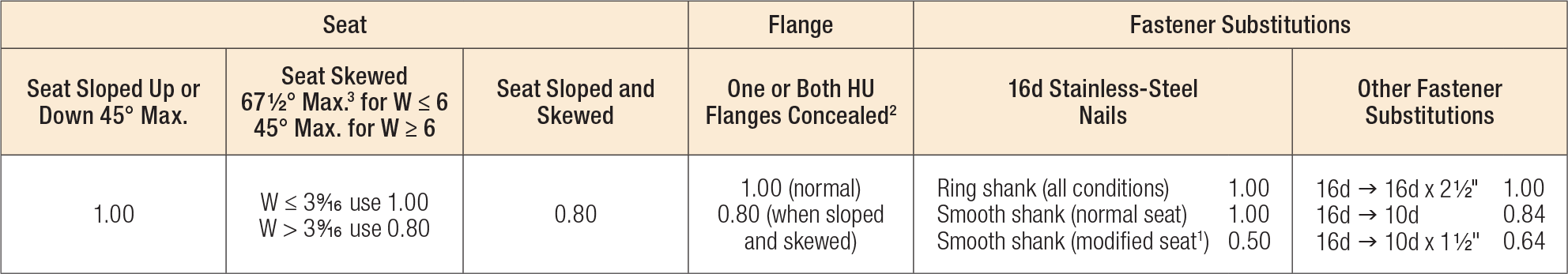

U/HU/HUC Series Modifications and Associated Load Reduction Factors

  1. Modified seat is sloped, skewed or both. If sloped only or skewed only, use a smooth shank stainless steel reduction of 0.65.
  2. For both flanges concealed, W must be at least 2 5/16". To order ask for HUCXXX. For skewed HUC, only flange on acute side is concealed.
  3. Skews over 50° require a square-cut joist.
Reduction Factor Instructions

Allowable Download =
  Seat x Flange x Stainless Steel Nails x Other Fastener Substitutions x (Table Load)
Allowable Uplift =
  0.75 x Face Fastener Type x (Table Load) for skewed or sloped
  1.00 x Face Fastener Type x (Table Load) for non-skewed or sloped

Code Reports

Part IAPMO UES ER ICC-ES ESR City of Los Angeles State of Florida
HUSee specific model numbers for code listings.
HU210 ESR-2549 ESR-2523 RR25807 FL10655
HU210-2 ESR-2549 ESR-2523 RR25807 FL10531 FL10655
HU210-3 ESR-2549 ESR-2523 RR25807 FL10655
HU210-4 ESR-2549 ESR-2523 FL10655
HU212 ESR-2549 ESR-2523 RR25807 FL10655
HU212-2 ESR-2549 ESR-2523 RR25807 FL10531 FL10655
HU212-3 ESR-2549 ESR-2523 RR25807 FL10655
HU214 ESR-2549 ESR-2523 RR25807 FL10655
HU214-2 ESR-2549 ESR-2523 RR25807 FL10655
HU214-3 ESR-2549 ESR-2523 RR25807 FL10655
HU216 ESR-2549 ESR-2523 FL10655
HU216-2 ESR-2549 ESR-2523 RR25807 FL10531 FL10655
HU216-3 ESR-2549 ESR-2523 RR25807 FL10655
HU24-2 ESR-2549 ESR-2523 RR25807 FL10655
HU26 ESR-2549 ESR-2523 RR25807 FL10655
HU26-2 ESR-2549 ESR-2523 RR25807 FL10655
HU26-3 ESR-2549 ESR-2523 FL10655
HU28 ESR-2549 ESR-2523 RR25807 FL10655
HU28-2 ESR-2549 ESR-2523 RR25807 FL10655
HU28-4No code listing: Please contact us for test data.
HU310 ESR-2549 ESR-2552 ESR-2523 RR25801 RR25807 FL10531 FL10655
HU312 ESR-2549 ESR-2552 ESR-2523 RR25801 RR25807 FL10531 FL10655
HU314 ESR-2549 ESR-2552 ESR-2523 RR25801 RR25807 FL10531 FL10655
HU316 ESR-2549 ESR-2552 ESR-2523 RR25801 RR25807 FL10531 FL10655
HU34 ESR-2549 ESR-2523 RR25807 FL10655
HU36 ESR-2549 ESR-2523 RR25807 FL10655
HU38 ESR-2549 ESR-2523 RR25807 FL10655
HU410 ESR-2549 ESR-2552 ESR-2523 RR25801 RR25807 FL10531 FL10655
HU412 ESR-2549 ESR-2552 ESR-2523 RR25801 RR25807 FL10531 FL10655
HU414 ESR-2549 ESR-2552 ESR-2523 RR25801 RR25807 FL10531 FL10655
HU416 ESR-2549 ESR-2552 ESR-2523 RR25801 RR25807 FL10531 FL10655
HU44 ESR-2549 ESR-2523 RR25807 FL10655
HU46 ESR-2549 ESR-2523 RR25807 FL10655
HU48 ESR-2549 ESR-2523 RR25807 FL10531 FL10655
HU610 ESR-2549 ESR-2552 ESR-2523 RR25801 RR25807 FL10531 FL10655
HU612 ESR-2549 ESR-2552 ESR-2523 RR25801 RR25807 FL10531 FL10655
HU614 ESR-2549 ESR-2552 ESR-2523 RR25801 RR25807 FL10531 FL10655
HU616 ESR-2549 ESR-2552 ESR-2523 RR25801 RR25807 FL10531 FL10655
HU66 ESR-2549 ESR-2523 RR25807 FL10655
HU68 ESR-2549 ESR-2523 RR25807 FL10531 FL10655
HU810 ESR-2549 ESR-2523 FL10655
HU812 ESR-2549 ESR-2523 FL10655
HU814 ESR-2549 ESR-2523 FL10655
HU816 ESR-2549 ESR-2523 FL10655
HU88No code listing: Please contact us for test data.
HUC210-2 ESR-2549 ESR-2523 RR25807 FL10531 FL10655
HUC210-3 ESR-2549 ESR-2523 RR25807 FL10655
HUC210-4No code listing: Please contact us for test data.
HUC212-2 ESR-2549 ESR-2523 RR25807 FL10531 FL10655
HUC212-3 ESR-2549 ESR-2523 RR25807 FL10655
HUC214-2 ESR-2549 ESR-2523 RR25807 FL10655
HUC214-3 ESR-2549 ESR-2523 RR25807 FL10655
HUC216-2 ESR-2549 ESR-2523 RR25807 FL10531 FL10655
HUC216-3 ESR-2549 ESR-2523 RR25807 FL10655
HUC24-2 ESR-2549 ESR-2523 RR25807 FL10655
HUC26-2 ESR-2549 ESR-2523 RR25807 FL10655
HUC26-3No code listing: Please contact us for test data.
HUC28-2 ESR-2549 ESR-2523 RR25807 FL10655
HUC28-4No code listing: Please contact us for test data.
HUC310 ESR-2549 ESR-2552 ESR-2523 RR25801 RR25807 FL10531 FL10655
HUC312 ESR-2549 ESR-2552 ESR-2523 RR25801 RR25807 FL10531 FL10655
HUC314 ESR-2549 ESR-2552 ESR-2523 RR25801 RR25807 FL10531 FL10655
HUC316 ESR-2549 ESR-2552 ESR-2523 RR25801 RR25807 FL10531 FL10655
HUC34 ESR-2549 ESR-2523 RR25807 FL10655
HUC36 ESR-2549 ESR-2523 RR25807 FL10655
HUC38 ESR-2549 ESR-2523 RR25807 FL10655
HUC410 ESR-2549 ESR-2552 ESR-2523 RR25801 RR25807 FL10531 FL10655
HUC412 ESR-2549 ESR-2552 ESR-2523 RR25801 FL10531 FL10655
HUC414 ESR-2549 ESR-2552 ESR-2523 RR25801 RR25807 FL10531 FL10655
HUC416 ESR-2549 ESR-2552 ESR-2523 RR25801 RR25807 FL10531 FL10655
HUC44 ESR-2549 ESR-2523 RR25807 FL10655
HUC46 ESR-2549 ESR-2523 RR25807 FL10655
HUC48 ESR-2549 ESR-2523 RR25807 FL10531 FL10655
HUC610 ESR-2549 ESR-2552 ESR-2523 RR25801 RR25807 FL10531 FL10655
HUC612 ESR-2549 ESR-2552 ESR-2523 RR25801 RR25807 FL10531 FL10655
HUC614 ESR-2549 ESR-2552 ESR-2523 RR25801 RR25807 FL10531 FL10655
HUC616 ESR-2549 ESR-2552 ESR-2523 RR25801 RR25807 FL10531 FL10655
HUC66 ESR-2549 ESR-2523 RR25807 FL10655
HUC68 ESR-2549 ESR-2523 RR25807 FL10531 FL10655
HUC810No code listing: Please contact us for test data.
HUC812No code listing: Please contact us for test data.
HUC814No code listing: Please contact us for test data.
HUC816No code listing: Please contact us for test data.
HUC88No code listing: Please contact us for test data.
LUSee specific model numbers for code listings.
LU210 ESR-2549 ESR-2523 ESR-3096 RR25807 RR25910 FL10655
LU210R-18No code listing: Please contact us for test data.
LU24 ESR-2549 ESR-2523 ESR-3096 RR25807 RR25910 FL10655
LU24 ESR-2549 ESR-2523 ESR-3096 RR25807 RR25910 FL10655
LU24R-18No code listing: Please contact us for test data.
LU26 ESR-2549 ESR-2523 ESR-3096 RR25807 RR25910 FL10655
LU26R-18No code listing: Please contact us for test data.
LU28 ESR-2549 ESR-2523 ESR-3096 RR25807 RR25910 FL10655
LU28R-18No code listing: Please contact us for test data.
LUC210Z ESR-2549 ESR-2523 ESR-3096 RR25807 RR25910 FL10655
LUC26Z ESR-2549 ESR-2523 ESR-3096 RR25807 RR25910 FL10655
USee specific model numbers for code listings.
U210 ESR-2549 ESR-2523 RR25807 FL10655
U210-2 ESR-2549 ESR-2523 RR25807 FL10655
U210-3 ESR-2549 ESR-2523 RR25807 FL10655
U210R ESR-2549 ESR-2523 FL10655
U214 ESR-2549 ESR-2523 RR25807 FL10655
U24 ESR-2549 ESR-2523 RR25807 FL10655
U24-2 ESR-2549 ESR-2523 RR25807 FL10655
U24R ESR-2549 ESR-2523 FL10655
U26 ESR-2549 ESR-2523 RR25807 FL10655
U26-2 ESR-2549 ESR-2523 RR25807 FL10655
U26-3 ESR-2549 ESR-2523 FL10655
U26R ESR-2549 ESR-2523 FL10655
U310 ESR-2549 ESR-2552 ESR-2523 RR25801 RR25807 FL10531 FL10655
U314 ESR-2549 ESR-2552 ESR-2523 RR25801 RR25807 FL10531 FL10655
U34 ESR-2549 ESR-2523 RR25807 FL10655
U36 ESR-2549 ESR-2523 RR25807 FL10655
U410 ESR-2549 ESR-2552 ESR-2523 RR25801 RR25807 FL10531 FL10655
U410R ESR-2549 ESR-2523 FL10655
U414 ESR-2549 ESR-2552 ESR-2523 RR25801 RR25807 FL10531 FL10655
U44 ESR-2549 ESR-2523 RR25807 FL10655
U44R ESR-2549 ESR-2523 FL10655
U46 ESR-2549 ESR-2523 RR25807 FL10655
U46R ESR-2549 ESR-2523 FL10655
U610 ESR-2549 ESR-2552 ESR-2523 RR25801 RR25807 FL10531 FL10655
U610R ESR-2549 ESR-2523 FL10655
U66 ESR-2549 ESR-2523 RR25807 FL10655
U66R ESR-2549 ESR-2523 FL10655

ESR-2523 is an Index of many of Simpson Strong-Tie Stamped and Welded Cold-formed Steel Products for Wood or Cold-formed Steel Construction
