HGT Heavy Girder Tiedown

HGT

On This Page

Girder Tiedowns

This product's information may differ depending on the category of use. You are currently viewing details related to Girder Tiedowns. You can also view product information related to the categories of: Girder Tiedowns for Masonry, Girder Tiedowns for Plated Truss

The HGT is a girder tiedown for high-load, 2-, 3- or 4-ply truss applications. The HGT offers high uplift capacity for girders and can be installed on trusses and beams with top chord slopes up to 8/12. The HGT can be anchored down into place directly into CMU or in combination with a holdown.

Key Features

  • Crescent washers supplied to allow for adjustability during installation
  • Load rated to resist high-wind forces

Material

  • 7 gauge

Finish

  • Simpson Strong-Tie gray paint

Installation

  • Use all specified fasteners; see General Notes.
  • When the HGT-3 is used with a 2-ply girder or beam, shimming is required. Fasten shim to act as one unit.

Related Literature

Product Information Table

Fastener Production Information and Stuff & Things
Model No. Description Ga. W (in.) H (in.) Coating/Material Packaging Qty.
HGT-2 2-ply width 7 3 5/16 3 5/8 Simpson Strong-Tie Gray Paint 1
HGT-3 3-ply width 7 4 5/16 3 5/8 Simpson Strong-Tie Gray Paint 1
HGT-4 4-ply width 7 6 9/16 3 5/8 Simpson Strong-Tie Gray Paint 1

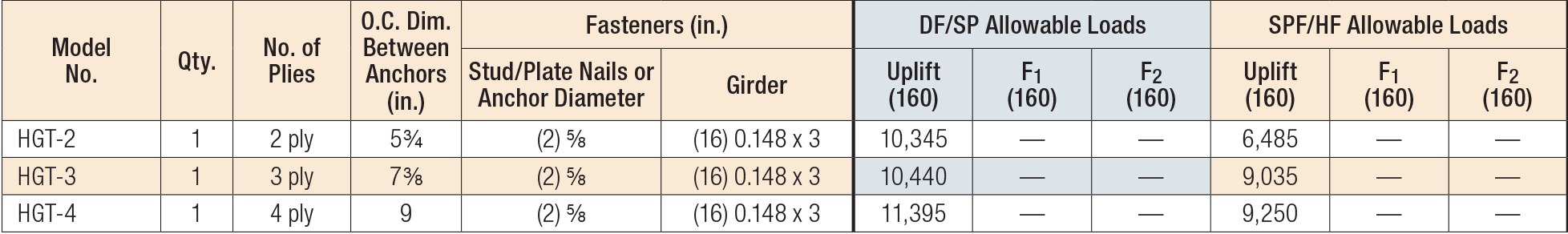

Load Tables

  1. See Straps and Ties General Notes.
  2. Girder tiedowns installed on the outside of the wall require a 3 1/2" overhang to achieve table loads.
  3. Strong-Drive® SDS Heavy-Duty Connector screws may be installed through metal truss plates as approved by the truss designer, provided the requirements of ANSI/TPI 1-2014, Sections 7.5.3.4 and 8.9.2 are met (predrilling required through the plate using a 5/32" bit maximum).
  4. Fasteners: Nail dimensions in the table are listed diameter by length. SDS screws are Simpson Strong-Tie® Strong-Drive® screws. For additional information, see Fastener Types and Sizes Specified for Simpson Strong-Tie Connectors.

Code Reports & Compliance

Drawings

PDF DWG DXF RFA IFC SAT
