LGT/MGT/VGT/HGT Girder Tiedowns

LGT/MGT/VGT/HGT

On This Page

Girder Tiedowns

This product's information may differ depending on the category of use. You are currently viewing details related to Girder Tiedowns. You can also view product information related to the category: Girder Tiedowns for Plated Truss

The LGT, MGT, VGT and HGT are girder tiedowns for moderate- to high-load capacity applications. The LGT and VGT are also suitable for retrofit applications.

LGT connectors provide a low-profile connection to the studs for easy installation of drywall. Simple to install and can be installed on the inside or outside of the wall. LGT connectors also provide exceptional bearing enhancement for heavy download applications.

The Variable Girder Tiedown (VGT) is a higher capacity alternative to the LGT and MGT for girder trusses. It attaches with Strong-Drive® SDS Heavy-Duty Connector screws to the side of truss and features a predeflected crescent washer that allows it to accommodate top chord pitches up to 8/12. The VGT is also available with one flange concealed for attachment to trusses with no tail.

The HGT offers the highest uplift capacity for girders and can be installed on trusses and beams with top chord slopes up to 8/12.

Material

  • HGT, VGT — 7 gauge; LGT2 — 14 gauge; MGT, LGT3, LGT4 — 12 gauge

Finish

  • HGT — Simpson Strong-Tie gray paint; LGT, MGT, VGT — galvanized

Installation

  • When the HGT-3 is used with a two-ply girder or beam, shimming is required. Fasten to act as one unit.
  • Before installing fasteners, ensure LGT3-SDS2.5 makes complete contact with bottom of truss.
  • Strong-Drive SDS Heavy-Duty Connector screws included with LGT3, LGT4 and VGT series.
  • VGT — can be installed on roof pitches up to 8/12 or on a bottom chord designed to transfer the load.
  • VGT — screw holes are configured to allow for double installation on a two-ply (minimum) truss.
  • VGT — when installed on trusses with no overhangs, specify VGTR/L.
  • VGT — install washer component (provided) so that top of washer is horizontal as well as parallel with top-of-wall top plate.
  • LGT3-SDS2.5 — the four large hexagon holes are intended for GFCMU and concrete applications.
  • MGT — install a minimum of (6) 0.148" x 3" nails into the face of roof member that is on same side as MGT base.

Related Literature

Wood Construction Connectors 2019-2020
C-C-2019
A catalog including new product information as well as any applicable specification and installation instructions for wood-to-wood and wood-to-concrete structural connectors.
Catalog
Conectores para la construcción en madera 2017–2018
C-C-2017SP
Información completa de productos, de la aplicación, de las tablas de cargas y de la instalación, para más de 3,000 conectores de madera a madera, madera a concreto y concreto a mampostería.
Catalog
Connectors for Cold-Formed Steel Construction
C-CF-2017
A catalog including specifications, load tables and installation illustrations for our cold-formed steel connectors and clips.
Catalog
Conectores para construcción de acero moldeado en frío
C-CF-2017SP
Un catálogo que incluye especificaciones, tablas de carga e ilustraciones de instalación para nuestras abrazaderas y conectores de acero moldeado en frío.
Catalog
High Wind-Resistant Construction Application Guide
F-C-HWRCAG16
The newly updated High Wind-Resistant Construction Application Guide offers new applications, updated loads, as well as more fastening information that is used to resist high-wind.
Product Guide
Installer's Pocket Guide
S-C-INSTALL16
S-C-INSTALL16 is a guide featuring updated products, new color illustrations and easier navigation. Some popular structural fastening and anchoring products have also been added.
Installation Guide
Hurricane Tie Used for Truss Bearing Enhancement
T-C-HTIEBEAR18
A technical bulleting providing the allowable downloads of our hurricane ties when used for truss-bearing enhancement. The piece includes allowable loads for connectors and for the connectors and wood combined.
Technical Bulletin
Uplift Connectors Truss-to-Wall Tiedowns (Spruce-Pine-Fir)
T-C-UPLFTSPF16R
A one-page, double-sided technical bulletin providing allowable loads and fastening requirements for when a wood truss is supported by a spruce-pine-fir or hem fir double top plate.
Technical Bulletin

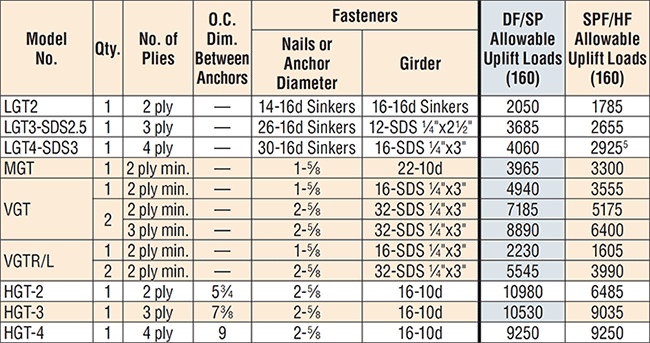

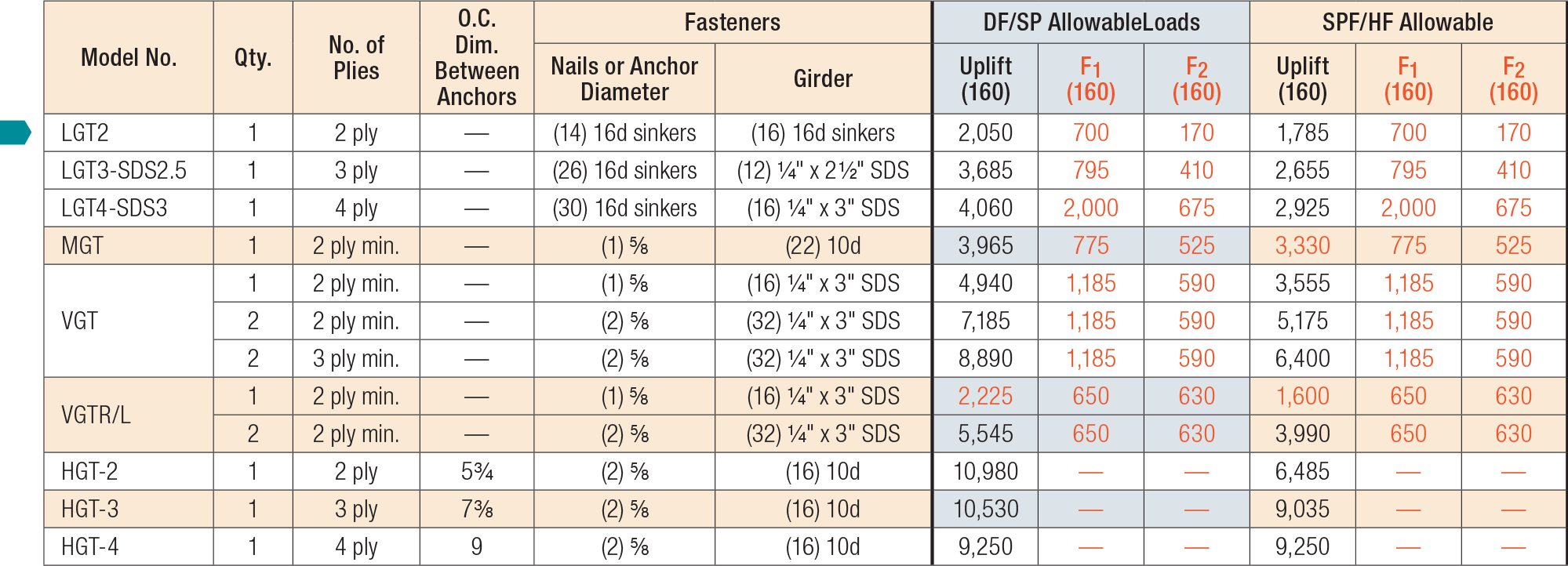

Load Tables

    These products are available with additional corrosion protection. Additional products on this page may also be available with this option, check with Simpson Strong-Tie for details.

  1. See General Notes for Straps and Ties.
  2. LGT2 — F2 load requires installation of (4) 0.148" x 3 1/4" sinkers in optional nail holes.
  3. LGT4 — F2 load requires installation of (7) 0.148" x 3 1/4" sinkers in optional nail holes.
  4. LGT4 — Uplift for DF/SP girder and SPF studs is 3,860 lb.
  5. MGT can be installed with straps vertical for full table load, provided that all specified nails are installed to either a solid header or minimum double 2x6 web.
  6. LGT connectors can provide bearing enhancement loads for truss download reactions. For more information, refer to technical bulletin T-C-HTIEBEAR.
  7. Girder tiedowns installed on the outside of the wall require a 3 1/2" overhang to achieve table loads.
  8. Strong-Drive® SDS Heavy-Duty Connector screws may be installed through metal truss plates as approved by the Truss Designer, provided the requirements of ANSI/TPI 1-2014, Sections 7.5.3.4 and 8.9.2 are met (predrilling required through the plate using a 5/32" bit maximum).
  9. Fasteners: Nail dimensions in the table are listed diameter by length. SDS screws are Simpson Strong-Tie® Strong-Drive® screws. For additional information, see Fastener Types and Sizes Specified for Simpson Strong-Tie Connectors.
Typical LGT2 Installation
Typical LGT3-SDS2.5 Installation

Code Reports

Part IAPMO UES ER ICC-ES ESR City of Los Angeles State of Florida
HGTSee specific model numbers for code listings.
HGT-2 ESR-2613 ESR-2616 ESR-2877 ESR-2523 RR25726 RR25806 FL10456 FL10866
HGT-3 ESR-2613 ESR-2616 ESR-2877 ESR-2523 RR25726 RR25806 FL10456 FL10866
HGT-4 ESR-2613 ESR-2616 ESR-2877 ESR-2523 RR25726 RR25806 FL10456 FL10866
LGT2 FL11473
LGT3-SDS2.5 FL11473
LGT4-SDS3 FL11473
MGT FL11470 FL11473
VGT FL11473
VGTL FL11473
VGTR FL11473

ESR-2523 is an Index of many of Simpson Strong-Tie Stamped and Welded Cold-formed Steel Products for Wood or Cold-formed Steel Construction
