HL/HLG Heavy Angles and Gussets

Versatile angle gussets and heavy angles promote standardization and construction economy, and are compatible with Simpson Strong-Tie^® structural hardware.

Finish

7 ga. models — galvanized; 3 ga. models — Simpson Strong-Tie^® gray paint. May be ordered HDG; contact Simpson Strong-Tie.

Options

Gussets may be added to HL models when L ≥ 5" (specify G after model number, as in HL46G)

Catalog Pages

C-C-2017 (Wood Construction Connectors), page 334

Related Literature

Wood Construction Connectors Catalog

C-C-2017

Complete product and application information, as well as load tables and installation information, for more than 3,000 wood-to-wood, wood-to-concrete and wood-to-masonry connectors.

Catalog

Conectores para la construcción en madera 2017–2018

C-C-2017SP

Información completa de productos, de la aplicación, de las tablas de cargas y de la instalación, para más de 3,000 conectores de madera a madera, madera a concreto y concreto a mampostería.

Catalog

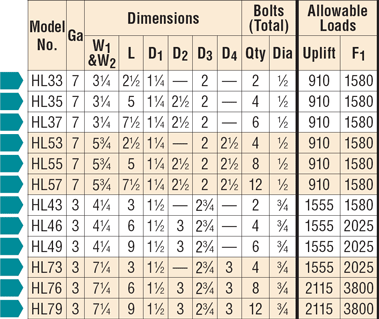

Load Tables

These products are available with additional corrosion protection. Additional products on this page may also be available with this option, check with Simpson Strong-Tie for details.

Allowable loads have been increased 60% for wind or earthquake loading with no further increase allowed; reduce where other loads govern.
Use 0.85 times table load for Hem Fir.
Parts should be centered on the face of the member to which they are attached.
Wood members for the '3' and '5' series must have a minimum width and thickness of 3 1/2" for table loads to apply.
Wood members for the '4' and '7' series must have a minimum width and thickness of 5 1/8" for table loads to apply.
Parts must be used in pairs.
Lag bolts of equal diameter (minimum 5" long) may be substituted for machine bolts into beam with no reduction in load.

Typical HL55 Installation

Code Reports

Part	IAPMO UES ER	ICC-ES ESR	City of Los Angeles	State of Florida
HL33	No code listing: Please contact us for test data.
HL35	No code listing: Please contact us for test data.
HL37	No code listing: Please contact us for test data.
HL43	No code listing: Please contact us for test data.
HL46	No code listing: Please contact us for test data.
HL49	No code listing: Please contact us for test data.
HL53	No code listing: Please contact us for test data.
HL55	No code listing: Please contact us for test data.
HL57	No code listing: Please contact us for test data.
HL73	No code listing: Please contact us for test data.
HL76	No code listing: Please contact us for test data.
HL79	No code listing: Please contact us for test data.

Drawings

Part	Orthographic	Perspective
HL33	HL33 DWG DXF HL33 front view DWG DXF HL33 right view DWG DXF HL33 top view DWG DXF	None
HL35	HL35 DWG DXF HL35 front view DWG DXF HL35 right view DWG DXF HL35 top view DWG DXF	None
HL37	None	None
HL43	None	None
HL46	None	None
HL49	None	None
HL53	HL53 DWG DXF HL53 front view DWG DXF HL53 right view DWG DXF	None
HL55	HL55 DWG DXF HL55 front view DWG DXF HL55 right view DWG DXF HL55 top view DWG DXF	None
HL57	None	None
HL73	None	None
HL76	None	None
HL79	None	None
