ICFVL Ledger Connector System

ICFVL

Joist Framing Connectors

This product's information may differ depending on the category of use. You are currently viewing details related to Joist Framing Connectors. You can also view product information related to the category: Concrete

The ICFVL ledger connector system is engineered to solve the challenges of mounting CFS ledgers to insulated concrete form (ICF) walls. The ICFVL is designed to provide both vertical and lateral in-plane performance. There are many benefits over traditional anchor bolting, including better on-center spacing in most cases, faster installation and no protrusions.

The embedded legs of the ICFVL are embossed for additional stiffness and the hole allows for concrete to flow through and around the connector. The exposed flange on the face of the ICF provides a structural surface for mounting a CFS ledger.

Material

  • ICFVL — 14 ga. (68 mil); ICFVL-CW and ICFVL-W — 16 ga.

Finish

  • Galvanized (G90)

Installation

ICFVL in ICF

  • Snap a chalk line for the bottom of the ledger
  • Mark required on-center spacing
  • Use ICFVL to mark kerfs locations
  • Cut kerfs as marked
  • Insert ICFVL flush to the face of the ICF
  • Pour concrete

CFS Ledger Attachment

  • Position the ledger level to the chalk line and against the ICFVL
  • Attach with four #14 x 3/4", #3 drill-point screws (not provided)
  • All screws should be located at least 1/2" from the edge of the ICFVL
  • Space screws evenly

Warning

  • Industry studies show that hardened fasteners can experience performance problems in wet environments. Accordingly, use this product in dry environments only.

Related Literature

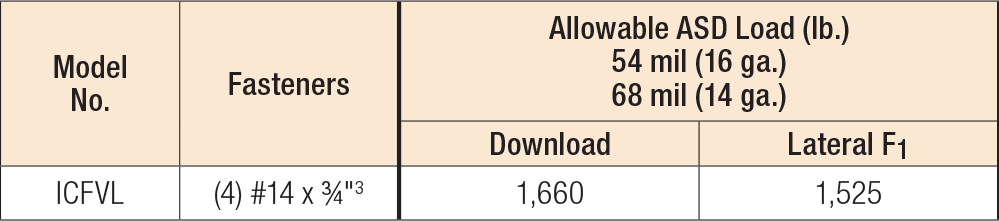

Load Tables

  1. Fasteners for CFS ledger are not provided.
  2. Loads apply to ICF foam thicknesses of 2 3/4" or less. Contact Simpson Strong-Tie for allowable loads on thicker walls.
  3. Alternately, 1/4" x 3/4" fastener may be used.
  4. Concrete f'c = 2,500 psi minimum.
  5. When combining download and lateral loads, the Designer shall use the following interaction equation:    Design Download/Allowable Download + Design Lateral Load/Allowable Lateral Load ≤ 1.

These tables address vertical load applications only

  1. The Designer may specify different spacing based on the load requirements.
  2. See flier F-C-ICFVL for additional connection details.

Code Reports

Part IAPMO UES ER ICC-ES ESR City of Los Angeles State of Florida
ICFVLNo code listing: Please contact us for test data.

Drawings

Part Orthographic Perspective
ICFVL
ICFVL Front View
DWG DXF
ICFVL Left View
DWG DXF
ICFVL Top View
DWG DXF
