S/B High-Capacity Hanger
Product Details
The S/B installs to structural steel or cold-formed steel members for support of cold-formed steel joists. The design provides dimensional accuracy and helps to ensure proper bearing area and connection. These modifiable, high-capacity, top-flange hangers are manufactured with precision forming and quality control.
Key Features
- Attaches to cold-formed steel members with screws or to structural steel with powder-actuated fasteners or welds
- Can be skewed to a maximum of 45°
- These load-rated hangers have been tested and code listed
Material
- 97mil (12 ga.)
Finish
- Galvanized (G90)
Installation
Cold-Formed Steel:
- May be attached to cold-formed steel supporting members with screws to the face and top flanges and provide capacities for downward and uplift.
Structural Steel:
- May be attached to structural steel support members with powder-actuated fasteners or welds. For powder-actuated fasteners use PDPAT-62KP (0.157" x 5/8") and provide full penetration as required. For welds, use a minimum of 1/8" x 2" fillet weld on each top flange as required. Distribute the weld equally on both flanges. Capacities are provided for downward loads.
Options
Skew hanger limitations:
- May be skewed up to a maximum of 45º. Widths for skewable sections are limited to a maximum of 5 1/4" (specify right or left skew).
Related Literature
Product Information Table

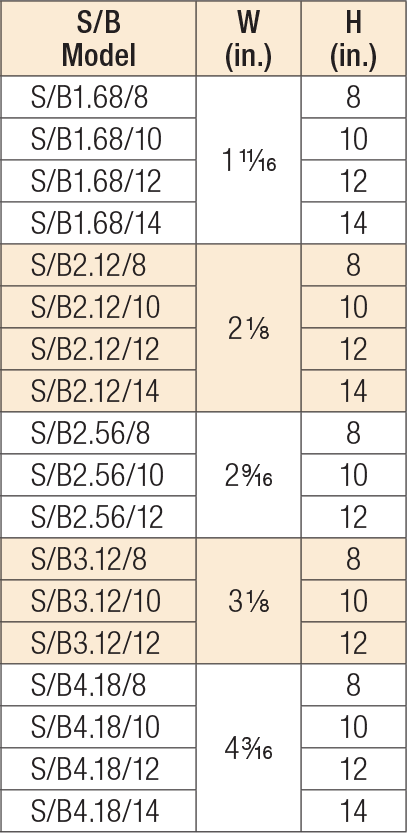

Model No. | Joist Size (in.) | Ga. | Thickness (mil) | W (in.) | H (in.) | Coating/Material | Packaging Qty. |
---|---|---|---|---|---|---|---|
S/B1.68/10 | 1 5/8 x 10 | 12 | 97 | 1 11/16 | 10 | Zinc Galvanized, G90 | 1 |
S/B1.68/12 | 1 5/8 x 12 | 12 | 97 | 1 11/16 | 12 | Zinc Galvanized, G90 | 1 |
S/B1.68/14 | 1 5/8 x 14 | 12 | 97 | 1 11/16 | 14 | Zinc Galvanized, G90 | 1 |
S/B1.68/6 | 1 5/8 x 6 | 12 | 97 | 1 11/16 | 6 | Zinc Galvanized, G90 | 1 |
S/B1.68/8 | 1 5/8 x 8 | 12 | 97 | 1 11/16 | 8 | Zinc Galvanized, G90 | 1 |
S/B2.12/10 | 2x10 | 12 | 97 | 2 1/8 | 10 | Zinc Galvanized, G90 | 1 |
S/B2.12/12 | 2x12 | 12 | 97 | 2 1/8 | 12 | Zinc Galvanized, G90 | 1 |
S/B2.12/14 | 2x14 | 12 | 97 | 2 1/8 | 14 | Zinc Galvanized, G90 | 1 |
S/B2.12/6 | 2x6 | 12 | 97 | 2 1/8 | 6 | Zinc Galvanized, G90 | 1 |
S/B2.12/8 | 2x8 | 12 | 97 | 2 1/8 | 8 | Zinc Galvanized, G90 | 1 |
S/B2.56/10 | 2 1/2 x 10 | 12 | 97 | 2 9/16 | 10 | Zinc Galvanized, G90 | 1 |
S/B2.56/12 | 2 1/2 x 12 | 12 | 97 | 2 9/16 | 12 | Zinc Galvanized, G90 | 1 |
S/B2.56/8 | 2 1/2 x 8 | 12 | 97 | 2 9/16 | 8 | Zinc Galvanized, G90 | 1 |
S/B3.12/10 | 3x10 | 12 | 97 | 3 1/8 | 10 | Zinc Galvanized, G90 | 1 |
S/B3.12/12 | 3x12 | 12 | 97 | 3 1/8 | 12 | Zinc Galvanized, G90 | 1 |
S/B3.12/8 | 3x8 | 12 | 97 | 3 1/8 | 8 | Zinc Galvanized, G90 | 1 |
S/B3.38/10 | Double 1 5/8 x 10 | 12 | 97 | 3 3/8 | 10 | Zinc Galvanized, G90 | 1 |
S/B3.38/12 | Double 1 5/8 x 12 | 12 | 97 | 3 3/8 | 12 | Zinc Galvanized, G90 | 1 |
S/B3.38/14 | Double 1 5/8 x 14 | 12 | 97 | 3 3/8 | 14 | Zinc Galvanized, G90 | 1 |
S/B3.38/6 | Double 1 5/8 x 6 | 12 | 97 | 3 3/8 | 6 | Zinc Galvanized, G90 | 1 |
S/B3.38/8 | Double 1 5/8 x 8 | 12 | 97 | 3 3/8 | 8 | Zinc Galvanized, G90 | 1 |
S/B4.18/10 | Double 2x10 | 12 | 97 | 4 3/16 | 10 | Zinc Galvanized, G90 | 1 |
S/B4.18/12 | Double 2x12 | 12 | 97 | 4 3/16 | 12 | Zinc Galvanized, G90 | 1 |
S/B4.18/14 | Double 2x14 | 12 | 97 | 4 3/16 | 14 | Zinc Galvanized, G90 | 1 |
S/B4.18/6 | Double 2x6 | 12 | 97 | 4 3/16 | 6 | Zinc Galvanized, G90 | 1 |
S/B4.18/8 | Double 2x8 | 12 | 97 | 4 3/16 | 8 | Zinc Galvanized, G90 | 1 |
Hanger Modification Options: Custom Width, Height and Skew
Custom ordering example:
Joist 800S162-54 using S/B hanger skewed right 20°.
Load Tables
S/B Hanger Allowable Loads (lb.)
- Designer shall ensure that the joist member adequately transfers load to hanger. Header must be braced to prevent buckling per designer specification.
- Load is based on the Simpson Strong-Tie PDPAT-62KP (0.157" x 5/8") powder-actuated fasteners. Steel headers with thicknesses between 1/4" and 3/4" having minimum Fy = 36 ksi. A Red (level 5) or Purple (level 6) powder load may be required to achieve specified penetration.
- Tabulated loads are based on testing with full bearing of 2 1/2" flange-depth minimum with 97 mil (12 ga.) CFS for S/B hanger.
- See Fastening Systems for more information on Simpson Strong-Tie fasteners.
Code Reports & Compliance
Drawings
DWG | DXF | RFA | IFC | SAT | |||
---|---|---|---|---|---|---|---|
