VPA Variable-Pitch Connector
Rafter-to-Wall Connectors for Solid Sawn Lumber
This product's information may differ depending on the category of use. You are currently viewing details related to Rafter-to-Wall Connectors for Solid Sawn Lumber. You can also view product information related to the category: Variable-Pitch Connector
The VPA may be sloped in the field, offering a versatile solution for attaching rafters to the top plate. It will adjust to accommodate slopes between 3:12 and 12:12, making it a complement to the versatile LSSU. This connector eliminates the need for notched rafters, beveled top plates and toe nailing.
Material
- 18 gauge
Finish
- Galvanized
Installation
- Use all specified fasteners; see General Notes
- View step-by-step installation instructions in the Installer's Pocket Guide (S-C-INSTALL)
Related Literature
-
Conectores para la construcción en madera 2017–2018C-C-2017SPInformación completa de productos, de la aplicación, de las tablas de cargas y de la instalación, para más de 3,000 conectores de madera a madera, madera a concreto y concreto a mampostería.Catalog -
Installer's Pocket GuideS-C-INSTALL16S-C-INSTALL16 is a guide featuring updated products, new color illustrations and easier navigation. Some popular structural fastening and anchoring products have also been added.Installation Guide -
Engineered Wood / SCL Connector Guide (English and Spanish)WC-C-EWPBI13The WC-C-EWPBI13 is a double-sided, color updated bi-lingual (English/Spanish) wall chart featuring product and installation illustrations of top-selling EWP/SCL connectors. -
Show 1 MoreShow Less
Load Tables

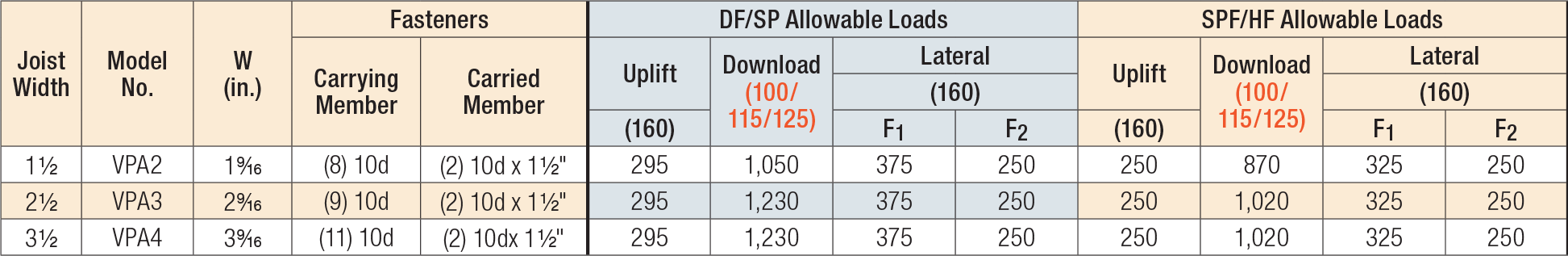

VPA2
- Loads include an increase for wind or earthquake loading with no further increase allowed; reduce where other loads govern.
- NAILS: 10d = 0.148" dia. x 3" long, 10dx1 1/2 = 0.148" dia. x 1 1/2" long. See other nail sizes and information.
Code Reports
| Part | IAPMO UES ER | ICC-ES ESR | City of Los Angeles | State of Florida |
|---|---|---|---|---|
| VPA | See specific model numbers for code listings. | |||
| VPA2 | ESR-2551 ESR-2523 | RR25804 | FL10447 | |
| VPA3 | ESR-2551 ESR-2523 | RR25804 | FL10447 | |
| VPA4 | ESR-2551 ESR-2523 | RR25804 | FL10447 | |
ESR-2523 is an Index of many of Simpson Strong-Tie Stamped and Welded Cold-formed Steel Products for Wood or Cold-formed Steel Construction |
||||
Drawings
| Part | Orthographic | Perspective |
|---|---|---|
| VPA | None | None |
| VPA2 | ||
| VPA3 | None | |
| VPA4 | None |
