RTC/FWH Rigid Tie® Connectors

RTC/FWH

The Rigid Tie® RTC series secures two wood members to a vertical post forming a 90° corner. The RTC42 and RTC44 are heavy-duty structural connectors. Based on loads of 40 lbs. per sq. ft., a 10'x10' deck can be built using 2x8 joists and 4 RTC42s. See the table for post and joist sizes.

RTB – a bracket for intersecting 2x members.
FWH – 4 way connectors for 2x members with bendable flanges.
RTA – connects two 2x wood members at a 90° angle.
RTF – connects two members in a "pass-through" application.
RTR and RTU – a 2x member crosses another.

Material

RTC44—14 gauge; RTA2—16 gauge; RTR and RTB—20 gauge; all others—18 gauge

Finish

Galvanized. Some products available in stainless steel or ZMAX® coating. See Corrosion Information.

Installation

  • Use all specified fasteners. See General Notes.
  • Install vertical members first, then attach horizontal members for easier alignment.
  • Seat wood member in bracket with a C-clamp before securing to aid positioning and prevent skewing.
  • Always follow manufacturer's instructions when using power tools and building equipment.

WARNING:
Industry studies show that hardened fasteners can experience performance problems in wet and corrosive environments. Accordingly, use the SD8x1.25 in dry, interior, and non-corrosive environments only.

Related Links

To learn more about the new WBSK Workbench or Shelving Unit Hardware Kit that includes RTC2Zs, fasteners and plans to build a workbench or shelving unit, visit www.diydoneright.com.

Related Literature

Load Tables

    These products are available with additional corrosion protection. Additional products on this page may also be available with this option, check with Simpson Strong-Tie for details.

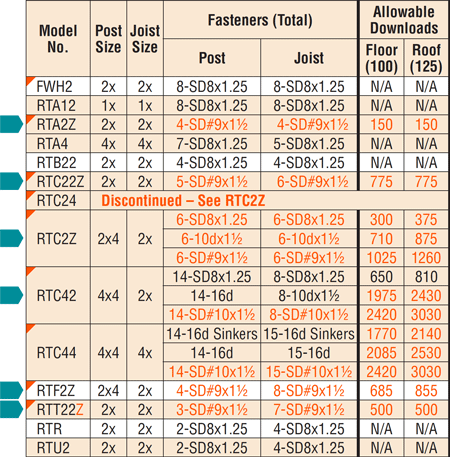

   These models are approved for installation with the Strong-Drive® SD Connector screw. See the load values below.

  1. Allowable loads must be equally distributed on both joists.
  2. Loads are for Douglas Fir Larch.
  3. NAILS: 16d = 0.162" dia. x 3 1/2" long, 16d Sinker = 0.148" dia. x 3 1/4" long, 10dx1 1/2 = 0.148" dia. x 1 1/2" long.
    See other nail sizes and information.
  4. SCREWS: SD#9x1 1/2 = 0.131" dia. x 1 1/2" long, SD#10x1 1/2 = 0.161" dia. x 1 1/2", SD#8x1 1/4 = 0.156" dia. x 1 1/4" long..
    See Strong-Drive® SD Connector screw

Code Reports

Part IAPMO UES ER ICC-ES ESR City of Los Angeles State of Florida
FWHSee specific model numbers for code listings.
FWH2No load capacity: Products not tested or submitted because they are not load rated and code approval not required.
FWLSee specific model numbers for code listings.
FWL2No load capacity: Products not tested or submitted because they are not load rated and code approval not required.
RTASee specific model numbers for code listings.
RTA12No code listing: Please contact us for test data.
RTA2 No code listing. Please contact us for test data.
RTA2Z No code listing. Please contact us for test data.
RTA4No code listing: Please contact us for test data.
RTBSee specific model numbers for code listings.
RTB22No code listing: Please contact us for test data.
RTCSee specific model numbers for code listings.
RTC22Z ER-280 FL10865
RTC24 ER-102 ER-280 RR25962 FL10865
RTC24Z ER-102 ER-280 RR25962 FL10865
RTC2Z ER-280 FL10865
RTC42 ER-102 ER-280 RR25962 FL10865
RTC44 ER-102 ER-280 RR25962 FL10865
RTFSee specific model numbers for code listings.
RTF2 No code listing. Please contact us for test data.
RTF2ZNo code listing: Please contact us for test data.
RTRNo code listing: Please contact us for test data.
RTTSee specific model numbers for code listings.
RTT22No code listing: Please contact us for test data.
RTT22ZNo code listing: Please contact us for test data.
RTUSee specific model numbers for code listings.
RTU2No code listing: Please contact us for test data.
