MTSM Medium Twist Strap for Masonry

Roof Truss and Rafter Connectors, Ties, and Straps

This product's information may differ depending on the category of use. You are currently viewing details related to Roof Truss and Rafter Connectors, Ties, and Straps. You can also view product information related to the categories of: Twist Straps for Masonry, Twist Straps for Plated Truss

The MTSM offers moderate-strength truss-to-masonry connections. This masonry twist strap has a small bend section to reduce interference at the transition points between the two members. The MTSM is load rated for installation on both grout-filled CMU (GFCMU) and concrete.

Key Features

  • Installs with hex-head Titen® screws
  • Straps do not need to be wrapped over the truss to achieve the allowable load
  • Can be field bent once to a 45° angle

Material

  • 16 gauge (54 mil)

Finish

  • Galvanized; see Corrosion Information

Installation

  • Use all specified fasteners; see General Notes.
  • May be attached to either side of a grouted block wall. A minimum of one #5 horizontal rebar shall be installed in the top course of this wall.

Related Literature

Connectors for Cold-Formed Steel Construction Catalog
C-CF-2023
A catalog for Connectors for Cold-Formed Steel Construction products and solutions.
Catalog
Wood Construction Connectors 2024-2025
C-C-2024
A catalog including new product information as well as any applicable specification and installation instructions for wood-to-wood and wood-to-concrete structural connectors.
Catalog
Conectores para la construcción con madera 2021–2023
C-C-2021SP
El catálogo incluye información sobre nuevos productos, así como especificaciones e instrucciones de instalación aplicables para conectores estructurales de madera a madera y de madera a concreto.
Catalog
Wood Construction Connectors – Canadian Limit States Design
C-C-CAN2022
A complete product and application catalogue including load tables and installation information for wood-to-wood, wood-to-concrete and wood-to-masonry connectors.
Catalog
Connecteurs pour constructions en bois — Conception aux états limites canadiens
C-C-CAN2022CF
Un catalogue complet sur les produits et les applications, y compris de l’information sur l’installation et les tableaux de charge pour les connecteurs bois-à-bois, bois-à-béton et bois-à-maçonnerie.
Catalog
High Wind Guide
F-C-HWG23
A comprehensive guide to help designers select the most appropriate connections for high-wind regions.
Product Guide
High-Wind Retrofit Solutions for Homeowners
S-C-HWRGUIDE22
A flier providing recommendations on reducing the risk of hurricane- and other wind-induced damage to existing homes.
Flier
Connectors for Florida Hurricane Mitigation Retrofit When Re-Roofing
T-C-FLCODE23
A technical bulletin explaining how to achieve sufficient uplift capacity for roof-to-wall connections, with references to the 7th edition (2020) of the Florida Building Code.
Technical Bulletin

Product Information Table

Fastener Production Information and Stuff & Things

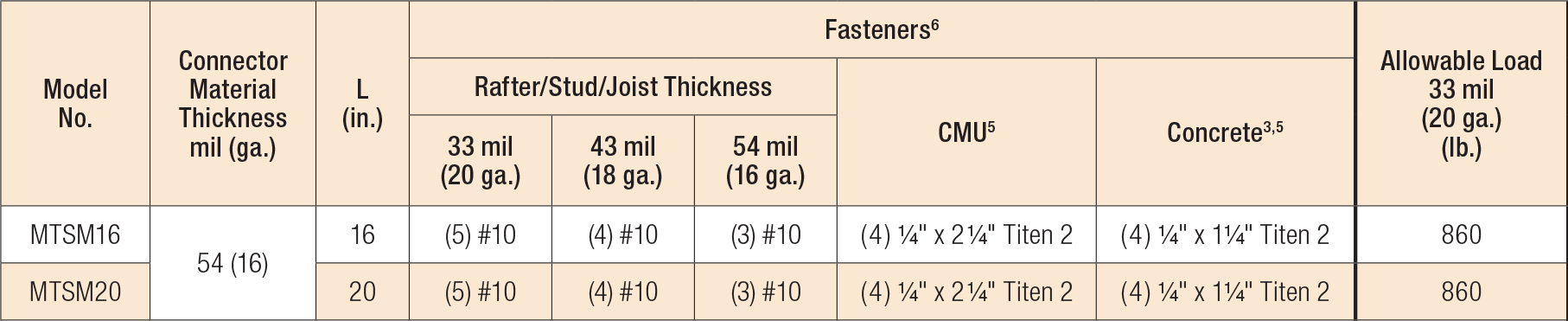

Model No. Thickness (mil) Ga. L (in.) Coating/Material Packaging Qty.
MTSM16 54 16 16 Zinc Galvanized, G90 1
MTSM20 54 16 20 Zinc Galvanized, G90 1

Load Tables

MTSM
  1. All straps have additional fastener holes.
  2. Twist straps do not have to be wrapped over the truss to achieve the load.
  3. Minimum edge distance in concrete block for Titen Turbo screws is 1 1/2".
  4. Straps can be installed on the inside face of the wall.
  5. Min. f'm = 1,500 psi and f'c = 2,500 psi.
  6. See Fastening Systems for more information on Simpson Strong-Tie fasteners.
