HPT Hurricane Tie

HPT

The HPT hurricane tie provides a key rafter-to-wall connection for retrofit applications located in Hawaii.

The HPT is specially designed and tested for single-wall homes and meets Hawaii state requirements for uplift resistance. The unique design of the HPT connects the wall to the rafter, avoiding interference from the blocking. The strengthened transition area of the HPT helps the structure resist high wind and allows the transfer of forces from the roof to the wall to help prevent damage. For applications where the blocking does not interfere, the H3Z is the recommended solution. The H3Z also meets Hawaii state requirements for uplift resistance. H3SS is stainless steel for maximum corrosion resistance.

Finish

  • ZMAX® coating (G185); H3 also available in stainless steel (model H3SS). See Corrosion Information.

Installation

  • Designed to meet the Hawaii Wind Resistive Devices (WRD) required minimum of 400 lbs. of allowable uplift capacity per the state of Hawaii’s loss mitigation program.
  • Installs easily with Simpson Strong-Tie® SD screws (one part per connection) OR with 10d x 1 1/2" nails (two parts per connection). Either HPT connection requires an additional 1/4" x 1 1/2" Simpson Strong-Tie® Strong Drive® screw (SDS) at the trim board.

Related Literature

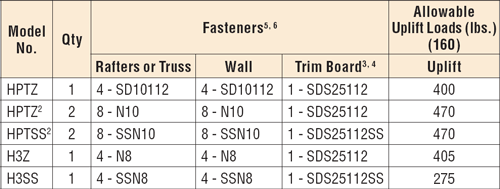

Load Tables

  1. Loads have been increased 60% for earthquake or wind load, with no further increase allowed; reduce where other loads govern.
  2. In the nailed application, two HPTZ must be used as shown in installation images to achieve the minimum of 400 lb.
  3. Parts are shipped in equal quantities of lefts and rights.
  4. A Strong-Drive screw is required at each connection to fasten the trim board to the wall board to transfer load to the exterior sheathing.
  5. Maximum trim board thickness for these installations is 3/4". For greater thickness use longer Strong-Drive screws, available in 2", 2 1/2" and 3" lengths.
  6. Nails: N10 = 10d x 1 1/2" = 0.148" dia. x 1 1/2" long, hot dip galvanized.
    N8 = 8d x 1 1/2" = 0.131" dia. x 1 1/2" long, hot dip galvanized.
    SSNA8D is 8d x 1 1/2" stainless-steel annular-ring shank = 0.131" dia. x 1 1/2" long.
  7. Screws: SD10112 is Strong-Drive #10 screw x 1 1/2" = 0.164" dia. x 1 1/2" long.
    SDS25112 is Strong-Drive screw 1/4" x 1 1/2" = 0.250" dia. x 1 1/2" long.
    SDS25112SS is Strong-Drive screw 1/4" x 1 1/2" stainless steel = 0.250" dia. x 1 1/2" long.

Code Reports

Part IAPMO UES ER ICC-ES ESR City of Los Angeles State of Florida
H3SSNo code listing: Please contact us for test data.
H3Z ESR-2613 ESR-2523 RR25718 FL10456
HPTZ No code listing. Please contact us for test data.

ESR-2523 is an Index of many of Simpson Strong-Tie Stamped and Welded Cold-formed Steel Products for Wood or Cold-formed Steel Construction

Drawings

Part Orthographic Perspective
H3SS
H3 Front View
DWG DXF
H3 Left View
DWG DXF
H3 Right View
DWG DXF
H3 Top View
DWG DXF
H3 Installed Perspective View
DWG DXF
High Wind Resistant Construction Detail D34: Truss/Rafter to Single Top Plate - HWRC D34 TrussRafter to Single Top Plate
DWG DXF
High Wind Resistant Construction Detail D35: Truss/Rafter to Single Top Plate - HWRC D35 TrussRafter to Single Top Plate
DWG DXF
H3Z
H3 Front View
DWG DXF
H3 Left View
DWG DXF
H3 Right View
DWG DXF
H3 Top View
DWG DXF
H3 Installed Perspective View
DWG DXF
High Wind Resistant Construction Detail D34: Truss/Rafter to Single Top Plate - HWRC D34 TrussRafter to Single Top Plate
DWG DXF
High Wind Resistant Construction Detail D35: Truss/Rafter to Single Top Plate - HWRC D35 TrussRafter to Single Top Plate
DWG DXF
HPTZ
HPTZ Front View
DWG DXF
HPTZ Left View
DWG DXF
HPTZ Right View
DWG DXF
HPTZ Top View
DWG DXF
HPTZ Perspective View
DWG DXF
