QuickFrames™ Products
QuickFrames offer innovative structural support solutions for rooftop and floor openings in commercial buildings. Our bolt-in roof frames feature telescoping rails that attach to a structure from under the roof decking—no welding required. For new construction, our drop-in roof frames are delivered fully assembled and weldable. Both systems are field-adjustable, offering a superior alternative to angle iron or channel steel. With QuickFrames, you’ll save time and effort on roof frame support.

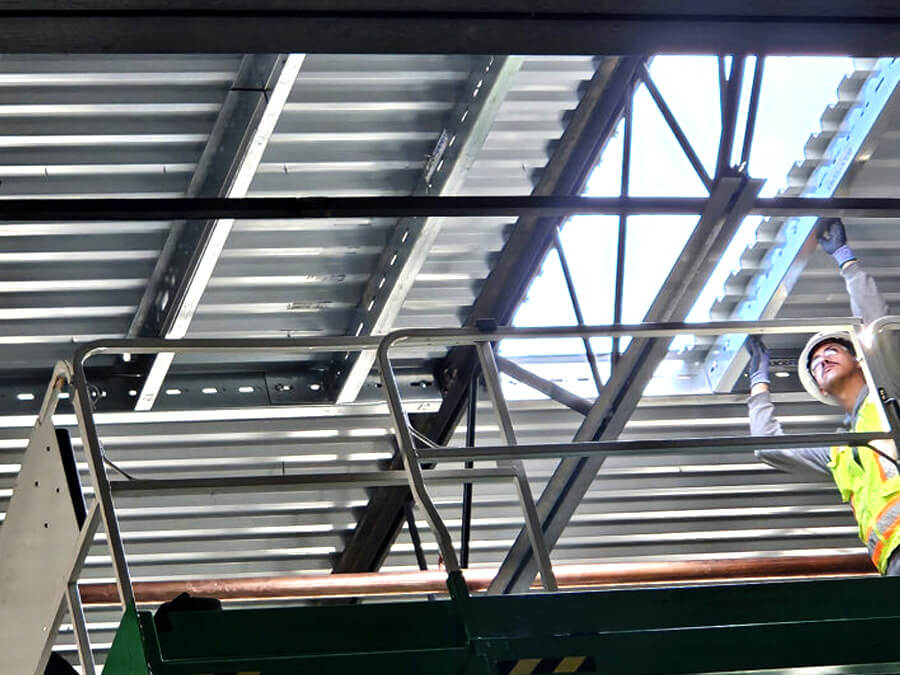

Pre-Engineered, Bolt-in Roof Support Frames
QuickFrames bolt-in frames have telescoping rails that adjust to ‘as-built’ building conditions, do not require welding, install easily under the roof deck, can be relocated after installation, and have shorter lead times than conventional steel. Having this versatility means you can adjust QuickFrames when changes occur giving you flexibility plus alleviating the stress that comes with constant design changes and detailing.
Bolt-in, pre-engineered galvanized steel roof frames are lightweight for a two-person install, requiring 20 minutes or less, and a 3/4″ impact driver.

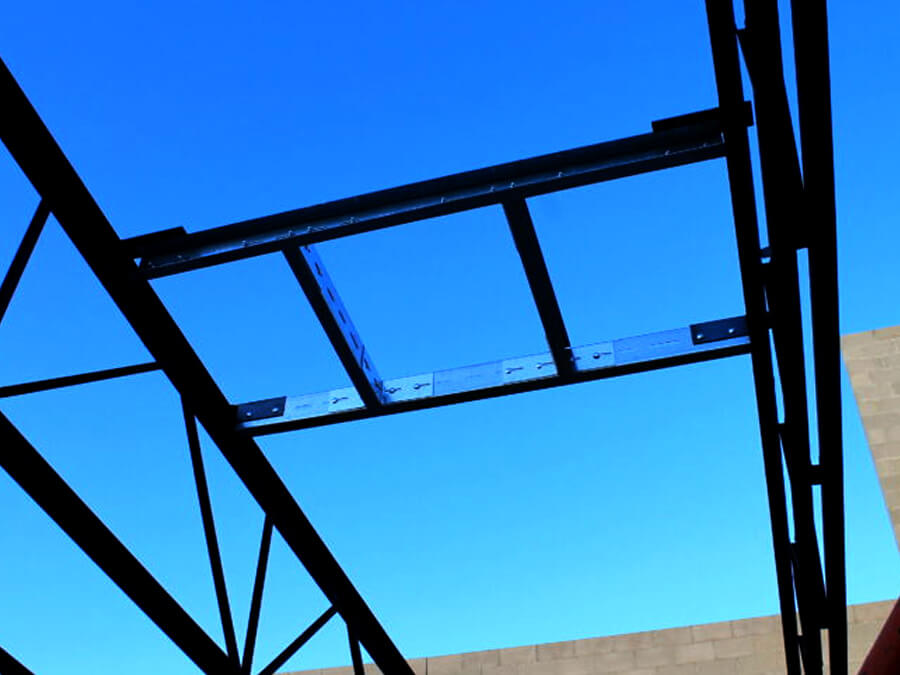

Fully-Assembled Drop-In Structural Roof Frames
QuickFrames drop-in frames are named for their simplicity—they are specifically designed to be dropped in by crane or reach-out forklift.
The frames are pre-constructed and pre-assembled to your job specifications before they leave our shop. So when they arrive at the jobsite, they are ready to go with minimal effort.
We’ve designed these drop-in frames to save valuable fabrication shop time, giving you flexibility to move other parts of your project forward at the same time.

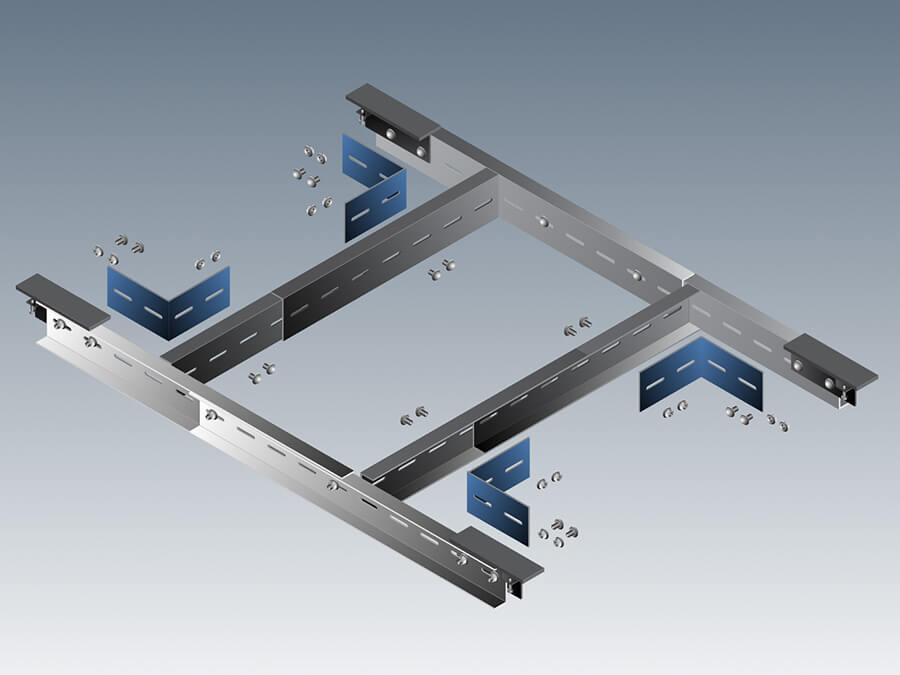

Roof Frame Rail Systems and Components
Each QuickFrames system comes with the following:
- Main Rails — Telescoping or Fixed Length
- Roof or Floor Connectors (Hangers)
- Rail Connectors (Angle Brackets)
- Nuts & Bolts
- Set of Plans
- Installation Guide
With only a few limitations you can mix and match our rails and hangers to fit any number of building environments.
Advantages of Using QuickFrames
- Telescoping frame rails
- Perfect for supporting rooftop equipment
- Adjustable in the field
- Ability to change locations during construction
- Can be installed when roof or deck is already installed
- Ideal for tenant improvements and new construction projects
- A solution when welding is prohibited
- Can be used when fire protection is a requirement for the existing infrastructure
- 24 – 48-hour response on quote requests
- Frames are stocked for fast delivery with next-day shipping available
- Downloadable engineering submittal available
- Site-specific engineering available
Ready to Get Started?
Let us help you find the best QuickFrames configurations for your engineering and equipment needs with a no-cost design consultation. You can also request a quote for your next project to experience our top-notch customer service and the benefits you can receive from using QuickFrames.
See QuickFrames in Action
How do I order and what do I need to place my QuickFrames order?
Answer: To order, you can submit your specification information through the Request a Quote page on our website, or you can send your plans via email to structuralsteelsales@strongtie.com.
For small frame quantities (>10 frames), we need the joist/beam spans (in inches), the opening dimension running parallel to the joist, the type of roof, and weight of the rooftop equipment being supported.
For large frame quantities, send us a complete set of plans and we will perform the take-offs for you.
How do I prepare for a QuickFrames Shipment
Answer: Your QuickFrames order will arrive on a pallet. You will need a forklift to unload or lift gate service is also available.
How do we determine which hanger to use?
Answer: You don’t need to figure this out on your own. We will assign the appropriate hanger for your project based on the design criteria
Are weldable hangers available?
Answer: Yes! Weldable hangers are available and will be determined according to the uplift needs. We can also provide site-specific hangers.
