CBS/CBSQ Column Bases

The CBS column base installs with machine bolts and provides tested capacity. The 1" standoff (included) meets code requirements for structural posts installed in basements or exposed to weather or water splash. The CBSQ uses Simpson Strong-Tie^® Strong-Drive^® SDS Heavy-Duty Connector screws, which allow for fast installation, reduced reveal and high capacity, and provide a greater net section area of the column compared to bolts.

Material

• See table

Finish

• Galvanized; available in HDG

Installation

• Use all specified fasteners; see General Notes.
• For CBS, install with two machine bolts.
• For CBSQ, install 1/4" x 2" Strong-Drive SDS Heavy-Duty Connector screws, which are provided with the column base. (Lag screws will not achieve the same load.)
• For full loads, a minimum of 3" side cover shall be provided.
• Post bases do not provide adequate resistance to prevent members from rotating about the base and therefore are not recommended for non-top-supported installations (such as fences or unbraced carports).

Ordering Information

• To order the CBSQ with screws, specify CBSQ-SDS2. To order without screws, specify CBSQ.

Related Links

• Wood Construction Connectors Technical and Installation Notes
• General Notes
• Corrosion Information
• Corrosion-Resistant Products

Catalog Pages

• C-C-2017 (Wood Construction Connectors), pages 100–101

Related Literature

Wood Construction Connectors Catalog

C-C-2017

Complete product and application information, as well as load tables and installation information, for more than 3,000 wood-to-wood, wood-to-concrete and wood-to-masonry connectors.

Catalog

•
  Conectores para la construcción en madera 2017–2018

  C-C-2017SP

  Información completa de productos, de la aplicación, de las tablas de cargas y de la instalación, para más de 3,000 conectores de madera a madera, madera a concreto y concreto a mampostería.

  Catalog
•
  High Wind-Resistant Construction Application Guide

  F-C-HWRCAG16

  The newly updated High Wind-Resistant Construction Application Guide offers new applications, updated loads, as well as more fastening information that is used to resist high-wind.

  Product Guide
•
  Deck Connection and Fastening Guide

  F-DECKCODE17

  A guide to recognizing deck deficiencies and building safer, stronger, longer-lasting outdoor deck structures.

  Product Guide
•
  Do Your Decks Meet Code?/Patio Cover System

  DIY-DECKPATIO16

  A two-sided tearpad showing connections on one side, while the other side shows the connectors and fasteners needed for a patio cover system. Newer product recommendations are included.

  Flier
•
  Flood-Resistant Construction Guide for Flood-Prone Regions

  F-C-FLOODCON13

  This flier is designed to educate Specifiers, Building Officials, and Dealers about how to build code-compliant structures to resist the forces created by flooding and high wind.

  Flier
•
  A Complete Connector System for Building Decks

  DIY-DCKPTIOCA17

  A two-sided tearpad for Canada showing the hardware needed for a deck system on one side and the hardware needed for a patio cover system on the other side. Newer product recommendations included.

  Flier
•
  DIY Done Right - Make Your Home Projects Easier

  S-HOMEPRJCTS14

  A 32-page color brochure showing examples of DIY project ideas using Simpson Strong-Tie® products, including decks, patio covers, fences, and garage organization.

  Flier
•
  DIY Done Right - Facilitamos los proyectos para su casa

  S-HOMPRJCTS14SP

  Flier
•
  Installer's Pocket Guide

  S-C-INSTALL16

  S-C-INSTALL16 is a guide featuring updated products, new color illustrations and easier navigation. Some popular structural fastening and anchoring products have also been added.

  Installation Guide
•
  Connectors Installed on SCL Columns

  T-C-SCLCLM16

  A one-page, single-sided technical bulletin discussing the structural properties of the two different surface sides of SCL columns, including the listing of reduction factors.

  Technical Bulletin
•
  Connectors Installed on SCL Columns

  T-C-SCLCLMCAN17

  A one-page Canadian Limit States version of the technical bulletin discussing the structural properties of two different surface sides of columns made from structural composite lumber (SCL).

  Technical Bulletin
• Show 9 More
  Show Less

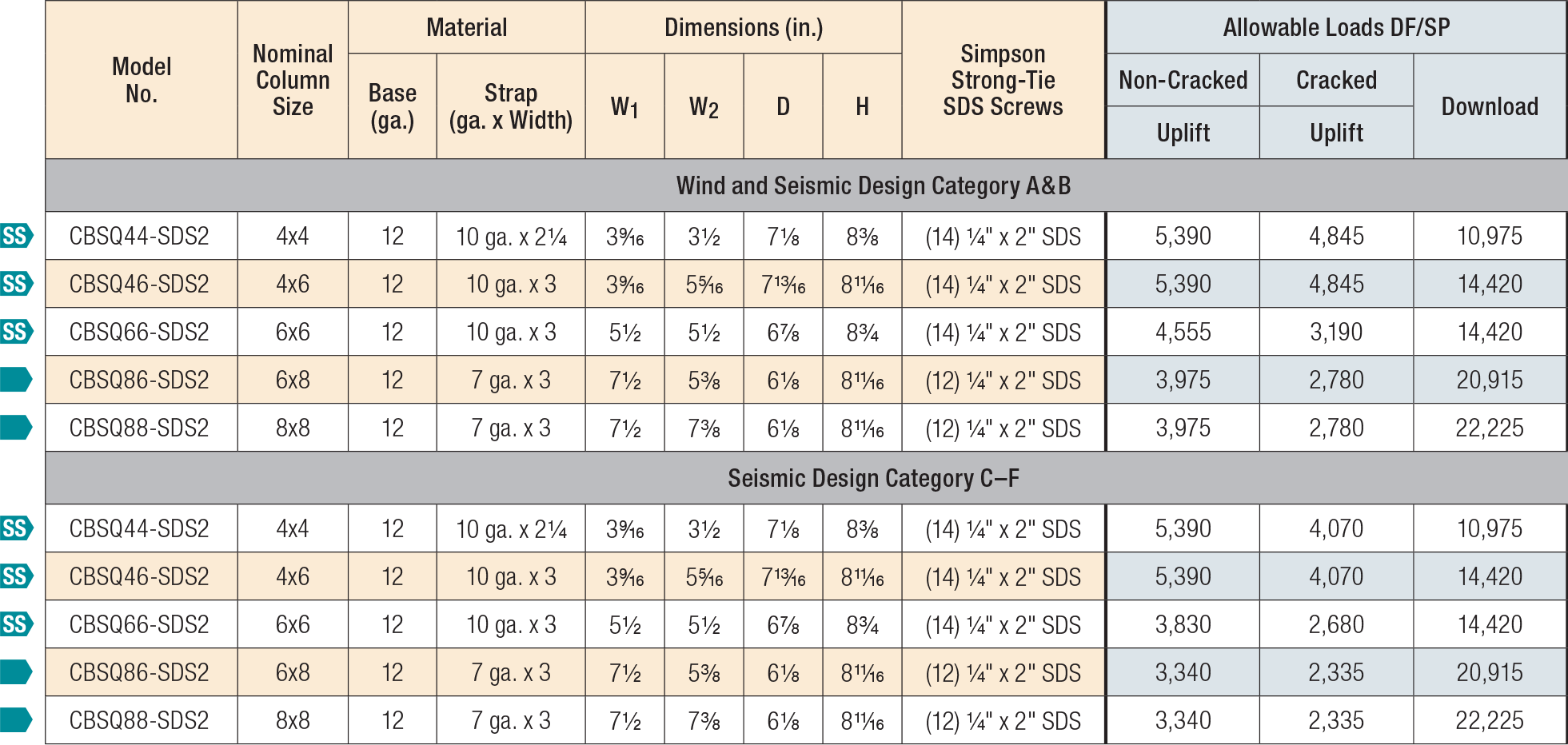

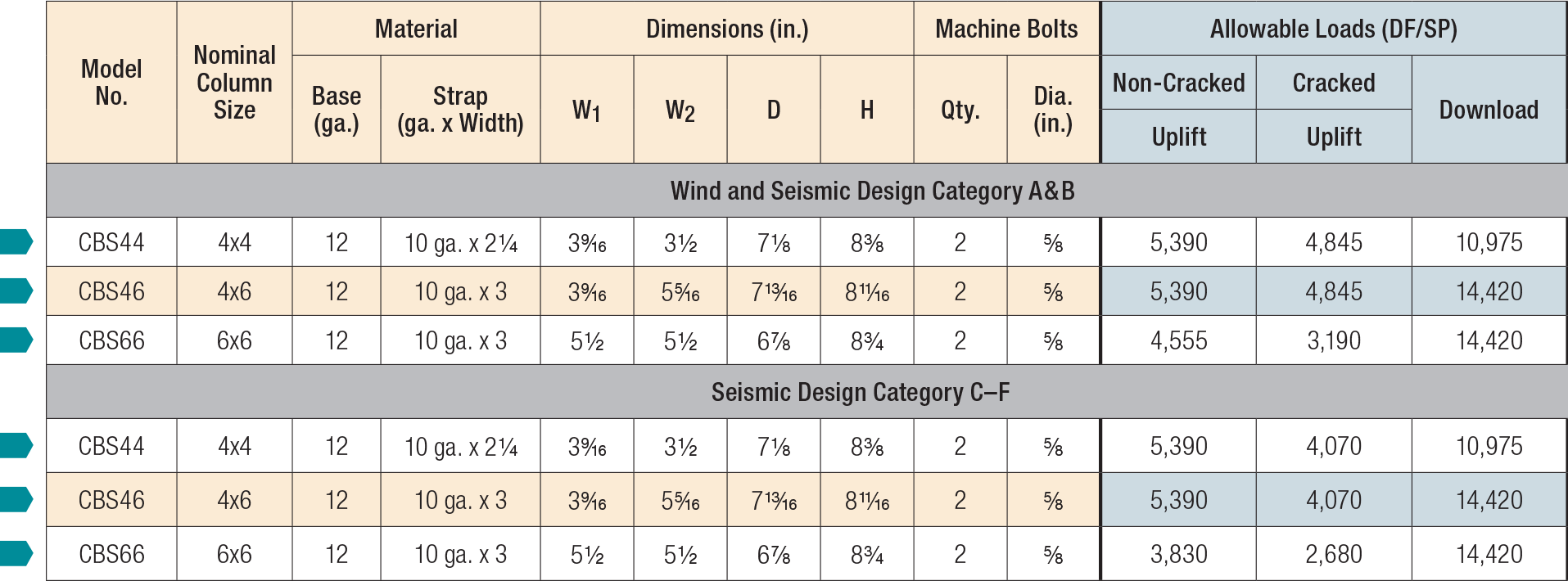

Load Tables
