DSP/SSP/SP/SPH/RSP4/TSP Stud Plate Ties

DSP/SSP/SP/SPH/RSP4/TSP

Stud Plate Ties

This product's information may differ depending on the category of use. You are currently viewing details related to Stud Plate Ties. You can also view product information related to the category: Strong-Rod™ URS Components

The stud plate tie series offers general solutions for connecting the stud to the top and bottom plates. All models can be used to make a connection to either the top or bottom plate, and several are suitable for double top plates and studs.

Material

  • DSP/SSP/SPH — 18 gauge; TSP — 16 gauge; all others — 20 gauge

Finish

  • Galvanized. Some products available in ZMAX® coating. See Corrosion Information.

Installation

  • Use all specified fasteners; see General Notes.
  • TSP/DSP/SSP — Sill plate installation: fill all round holes.
  • TSP/DSP/SSP — Top plate installation: fill all round and triangle holes.
  • SP1/SP2/SP3/SP5 — One of the 10d common stud nails is driven at a 45° angle through the stud into the plate.
  • Some products may be installed with the Strong-Drive® SD Connector screw. See model table.

Related Literature

Load Tables

SSP/DSP/TSP Load Table

    These products are available with additional corrosion protection. Additional products on this page may also be available with this option, check with Simpson Strong-Tie for details.

   These models are approved for installation with the Strong-Drive® SD Connector screw. See the load values below.

  1. Allowable loads have been increased 60% for wind or earthquake loading with no further increase allowed.
  2. When cross-grain bending or cross-grain tension cannot be avoided, mechanical reinforcement to resist such forces should be considered.
  3. Allowable loads for DSP installed to a rim board are 660 lb. (DF/SP), 545 lb. (SPF/HF).
  4. Noted values only apply to DF/SP members. For SPF values, multiply by 0.86.
  5. Southern pine allowable uplift load is 585 lbs.
  6. Allowable load for TSP installed to DF/SP top plate and SPF/HF stud is 450 lb.
  7. Nails: 10d = 0.148" dia. x 3" long, 10d x 1 1/2" = 0.148" dia. x 1 1/2" long.
    See other nail sizes and information.

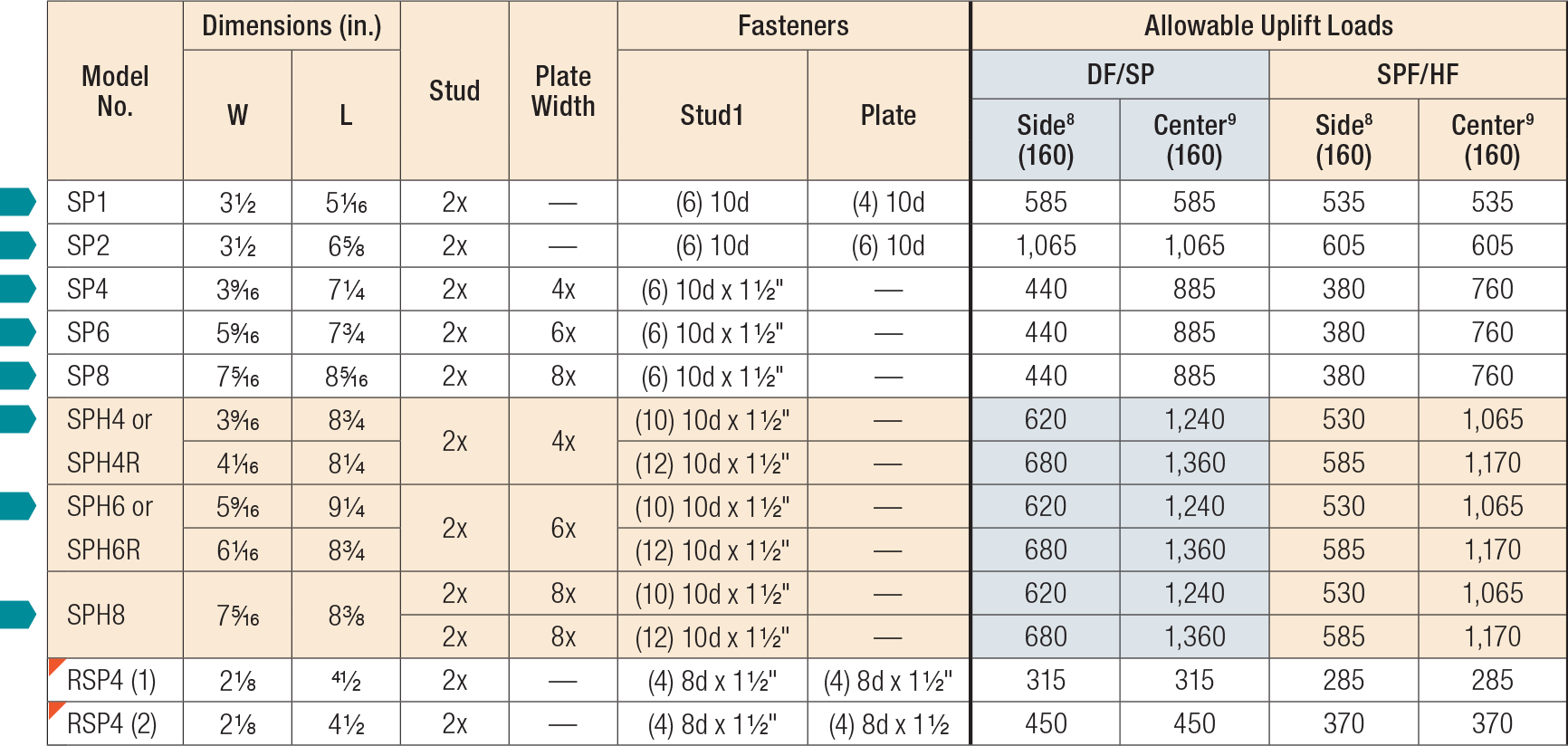

SP/SPH/RSP Load Table

  1. SP1/SP2 – drive one stud nail at an angle through the stud into the plate to achieve the table load (see illustration).
  2. Allowable loads have been increased for wind or earthquake loading with no further increase allowed; reduce where other loads govern.
  3. RSP4 – see Installation details (1) and (2) for reference.
  4. RSP4 – F2 is 250 lb. (installation 1) and 250 lb. (installation 2). F1 load is 210 lb. for both installations.
  5. Maximum load for SPH in Southern Yellow Pine is 1,490 lb. for center loading and 745 lb. for side loading.
  6. When cross-grain bending or cross-grain tension cannot be avoided, mechanical reinforcement to resist such forces should be considered.
  7. For retrofit application see technical bulletin T-C-STRAPS.
  8. Use Side (eccentric) load when uplift loads are applied to only one face of the top plate.
  9. Use Center (concentric) loads when uplift loads are applied at the centerline of the top plate, or where equal loads are applied to both sides of the top plate. Center loads should also be used for stud-to-bottom plate loads.
  10. Nails: 10d = 0.148" dia. x 3" long, 10d x 1 1/2" = 0.148" dia. x 1 1/2" long,
    8d x 1 1/2" = 0.131" dia. x 1 1/2" long.
    See other nail sizes and information.
Load Values with Strong-Drive® SD Connector Screws
Model No. Fasteners DF/SP Allowable Loads SPF/HF Allowable Loads
To Rafters/ Truss To Plates/Base To Studs/Post Uplift Lateral Uplift Lateral
(160) F1 (160) F2 (160) (160) F1 (160) F2 (160)
  1. H connector loads based on installation to double top plate.
  2. Uplift load for the H4 stud to bottom plate installation is 415 lbs for DF/SP and 355 lbs for SPF/HF.
  3. Uplift load for the H8 stud to bottom plate installation is 380 lbs for DF/SP and 325 lbs for SPF/HF.
RSP4(1) - 4-SD9112 4-SD9112 520 205 190 450 175 165
RSP4(2) - 4-SD9112 4-SD9112 520 275 255 450 235 220

Code Reports

Part IAPMO UES ER ICC-ES ESR City of Los Angeles State of Florida
DSP ER-102 ER-124 ESR-2613 RR25814 RR25489 RR25718 FL10446 FL10456 FL13872
DSPZ ER-102 ER-124 ESR-2613 RR25814 RR25489 RR25718 FL10446 FL10456 FL13872
RSPSee specific model numbers for code listings.
RSP4 ESR-2613 ESR-2523 ESR-3096 RR25718 RR25910 FL10456
RSP4F2 No code listing. Please contact us for test data.
RSPF1 No code listing. Please contact us for test data.
SPSee specific model numbers for code listings.
SP1 ESR-2613 ESR-2523 RR25718 FL10456
SP1Z ESR-2613 ESR-2523 RR25718 FL10456
SP2 ER-124 ESR-2613 ESR-2523 RR25718 FL10456
SP3No code listing: Please contact us for test data.
SP4 ER-102 ER-124 ESR-2613 ESR-2523 RR25489 RR25718 FL10456 FL13872
SP4Z ER-102 ER-124 ESR-2613 ESR-2523 RR25489 RR25718 FL10456 FL13872
SP5No code listing: Please contact us for test data.
SP6 ER-102 ER-124 ESR-2613 ESR-2523 RR25489 RR25718 FL10456 FL13872
SP6Z ER-102 ER-124 ESR-2613 ESR-2523 RR25489 RR25718 FL10456 FL13872
SP8 ESR-2613 ESR-2523 RR25718 FL10456
SP8Z ESR-2613 ESR-2523 RR25718 FL10456
SPHSee specific model numbers for code listings.
SPH4 ESR-2613 ESR-2523 RR25718 FL10456
SPH4RNo code listing: Please contact us for test data.
SPH4Z ESR-2613 ESR-2523 RR25718 FL10456
SPH6 ESR-2613 ESR-2523 RR25718 FL10456
SPH6RNo code listing: Please contact us for test data.
SPH6Z ESR-2613 ESR-2523 RR25718 FL10456
SPH8 ESR-2613 ESR-2523 RR25718 FL10456 FL10856
SPH8Z ESR-2613 ESR-2523 RR25718 FL10456
SSP ER-102 ER-112 RR25814 RR25489 RR25718 FL10446 FL10456 FL13872
SSPZ ER-102 ER-112 RR25814 RR25489 RR25718 FL10446 FL10456 FL13872
TSP ER-102 ER-124 RR25489 FL11470 FL13872

ESR-2523 is an Index of many of Simpson Strong-Tie Stamped and Welded Cold-formed Steel Products for Wood or Cold-formed Steel Construction
