JB/JBA/LB/LBAZ/BA/B/HHB Joist, Beam and Purlin Hangers

JB/JBA/LB/LBAZ/BA/B/HHB

The new, next-generation LBAZ and JBA hangers provide higher loads for 2x10, 2x12 and 2x14 members in 14 gauge and 18 gauge steel, respectively. The new nail locations on the JBA enable effective use with nailers.

The B and BA hangers are cost-effective hangers featuring min/max joist-nailing option. Min Nailing featuring Positive Angle Nailing targets moderate load conditions, whereas the Max Nailing generates capacities for higher loads. The unique two level embossment provides added stiffness to the top flange.

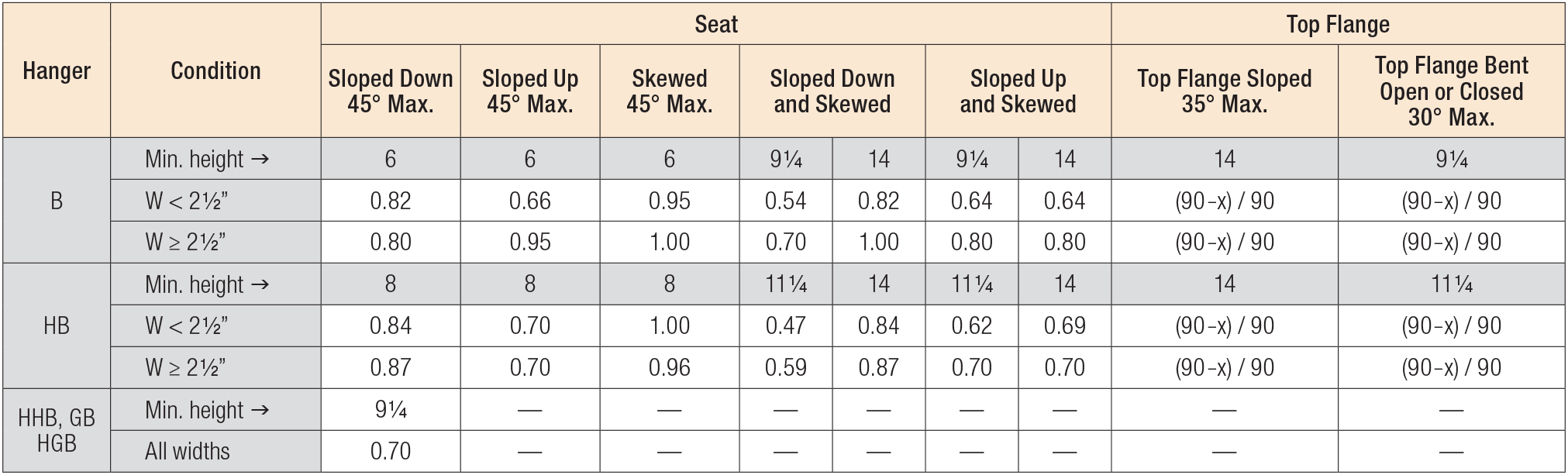

See tables. See Hanger Options for hanger modifications, which may result in reduced loads.

Material

See tables

Finish

BA, JB, JBA, LB, LBAZ and B—Galvanized; HHB–all saddle hangers and all welded sloped and special hangers—Simpson Strong-Tie® gray paint. BA, LB, B and HHB may be ordered hot-dip galvanized, specify HDG.

Installation

  • Use specified fasteners. See General Notes and nailer table.
  • LBAZ, BA, B and HHB may be welded to steel headers with weld size to match material thickness (approximate thickness shown). The minimum required weld to the top flanges is 1/8" x 2" (1/8" x 1 7/16" for LBAZ) fillet weld to each side of each top flange tab for 14 and 12 gauge and 3/16" x 2" fillet weld to each side of each top flange tab for 7 gauge. Distribute the weld equally on both top flanges. Welding cancels the top and face nailing requirements. Consult the code for special considerations when welding galvanized steel. The area should be well-ventilated. Weld on applications produce the maximum allowable down load listed. For uplift loads refer to technical bulletin Top-Flange Hangers Welded to Structural Steel Members (T-WELDUPLFT).
  • Ledgers must be evaluated for each application separately. Check TF dimension, nail length and nail location on ledger.
  • Refer to technical bulletin Sloped Joist in Non-Sloped Hangers (T-SLOPEJST) for information regarding load reductions on selected hangers which can be used without modification to support joists which have shallow slopes (≤3/4:12).



Options

B and HHB

  • Other widths are available; specify W dimension (the minimum W dimension is 1 9/16" for B and 3 1/4" for HHB).
  • See Hanger Options. BA, JB, JBA, LB and LBAZ hangers cannot be modified. Use LBV as an alternative for the JBA/LBAZ.

Related Literature

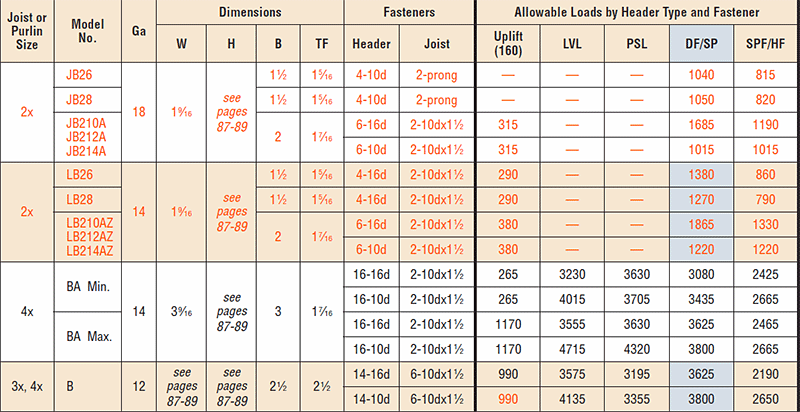

Load Tables

See Top Flange Hanger tables.

See Hanger Options for hanger modifications, which may result in reduced loads.

B Series With Various Header Applications

  1. Uplift loads are based on DF/SP lumber and have been increased for wind or earthquake loading with no further increase allowed. Reduce where other loads govern.
  2. For SPF use 0.86 x DF/SP uplift load.
  3. Where noted for single-ply joist hangers use 6-10dx1 1/2" nails.
  4. NAILS: 16d = 0.162" dia. x 3 1/2" long, 10d = 0.148" dia. x 3" long, 10dx1 1/2 = 0.148" dia. x 1 1/2" long. See other nail sizes.

Nailer Table

  1. Uplift values are for DF/SP nailers only. Refer to technical bulletin T-C-NAILUPLFT for SPF values
  2. For joist members 2 1/2" or wider, 16dx2 1/2" joist nails should be installed for additional uplift loads on the 3x and 4x nailer applications of 970 lbs. and 1010 lbs. respectively.
  3. If joist nailing is increased to (8)-10dx1 1/2, higher uplift loads are allowed. See technical bulletin T-C-NAILUPLFT.
  4. If joist nailing is increased to (6)-16dx2 1/2, higher uplift loads are allowed for joist members at least 2 1/2" wide. See technical bulletin T-C-NAILUPLFT.
  5. Attachment of nailer to supporting member is by the Designer.

Code Reports

Part IAPMO UES ER ICC-ES ESR City of Los Angeles State of Florida
BSee specific model numbers for code listings.
B316 ESR-2615 ESR-2523 RR25803 FL10667
B38 ESR-2615 ESR-2523 RR25803 FL10667
B410 ESR-2615 ESR-2523 RR25803 FL10667
B412 ESR-2615 ESR-2523 RR25803 FL10667
B414 ESR-2615 ESR-2523 RR25803 FL10667
B416 ESR-2615 ESR-2523 RR25803 FL10667
B48 ESR-2615 ESR-2523 RR25803 FL10667
B610 ESR-2615 ESR-2523 RR25803 FL10667
B612 ESR-2615 ESR-2523 RR25803 FL10667
B614 ESR-2615 ESR-2523 RR25803 FL10667
B616 ESR-2615 ESR-2523 RR25803 FL10667
B68 ESR-2615 ESR-2523 RR25803 FL10667
B7.12/11.25 ESR-2615 ESR-2523 RR25803 FL10667
B7.12/9.25 ESR-2615 ESR-2523 RR25803 FL10667
BASee specific model numbers for code listings.
BA410 ESR-2615 ESR-2523 RR25803 FL10667
BA412 ESR-2615 ESR-2523 RR25803 FL10667
BA48 ESR-2615 ESR-2523 RR25803 FL10667
HHBSee specific model numbers for code listings.
HHB412 ESR-2615 ESR-2523 RR25803 FL10667
HHB414 ESR-2615 ESR-2523 RR25803 FL10667
HHB416 ESR-2615 ESR-2523 RR25803 FL10667
HHB418 ESR-2615 ESR-2523 RR25803 FL10667
HHB5 ESR-2615 ESR-2523 RR25803 FL10667
HHB610No code listing: Please contact us for test data.
HHB612 ESR-2615 ESR-2523 RR25803 FL10667
HHB614 ESR-2615 ESR-2523 RR25803 FL10667
HHB616 ESR-2615 ESR-2523 RR25803 FL10667
HHB618 ESR-2615 ESR-2523 RR25803 FL10667
HHB68No code listing: Please contact us for test data.
HHB7 ESR-2615 ESR-2523 RR25803 FL10667
HHB812 ESR-2615 ESR-2523 RR25803 FL10667
HHB814 ESR-2615 ESR-2523 RR25803 FL10667
HHB816 ESR-2615 ESR-2523 RR25803 FL10667
JBSee specific model numbers for code listings.
JB210 ESR-2553 ESR-2523 RR25800 FL10856
JB210A ESR-2553 ESR-2523 FL10856
JB212 ESR-2553 ESR-2523 RR25800 FL10856
JB212A ESR-2553 ESR-2523 FL10856
JB214A ESR-2553 ESR-2523 FL10856
JB26 ESR-2553 ESR-2523 RR25800 FL10856
JB28 ESR-2553 ESR-2523 RR25800 FL10856
JBA No code listing. Please contact us for test data.
LBSee specific model numbers for code listings.
LB210 ESR-2553 ESR-2523 RR25800 FL10856
LB210AZ ESR-2553 ESR-2523 FL10856
LB212 ESR-2553 ESR-2523 RR25800 FL10856
LB212AZ ESR-2553 ESR-2523 FL10856
LB214 ESR-2553 ESR-2523 RR25800 FL10856
LB214AZ ESR-2553 ESR-2523 FL10856
LB216 ESR-2553 ESR-2523 RR25800 FL10856
LB26 ESR-2553 ESR-2523 RR25800 FL10856
LB28 ESR-2553 ESR-2523 RR25800 FL10856
LBAZ No code listing. Please contact us for test data.

ESR-2523 is an Index of many of Simpson Strong-Tie Stamped and Welded Cold-formed Steel Products for Wood or Cold-formed Steel Construction
