STC/STCT/DTC Roof Truss Clips

STC/STCT/DTC

On This Page

Truss Clips

This product's information may differ depending on the category of use. You are currently viewing details related to Truss Clips. You can also view product information related to the category: Roof Truss and Rafter Connectors, Ties, and Straps for Cold-Formed Steel Construction

For alignment control between a roof truss and nonbearing walls; the 1 1/2" slot permits vertical truss chord movement when loads are applied.

Material

  • 18 gauge (43 mil)

Finish

  • Galvanized

Installation

  • Use all specified fasteners; see General Notes.
  • Use STC or DTC depending on required loads. STC, installed with DS drywall stop, helps prevent fasteners tearing through the ceiling drywall (see installation illustration).
  • Use STCT where truss or rafter is separated from the top plate of the nonbearing wall.
  • Install slot nails in the middle of the slot.
  • Products not intended for floor applications due to the frequency of floor joist deflections and potential for squeaks.

Related Literature

Wood Construction Connectors 2019-2020
C-C-2019
A catalog including new product information as well as any applicable specification and installation instructions for wood-to-wood and wood-to-concrete structural connectors.
Catalog
Conectores para la construcción en madera 2017–2018
C-C-2017SP
Información completa de productos, de la aplicación, de las tablas de cargas y de la instalación, para más de 3,000 conectores de madera a madera, madera a concreto y concreto a mampostería.
Catalog
Connectors for Cold-Formed Steel Construction
C-CF-2017
A catalog including specifications, load tables and installation illustrations for our cold-formed steel connectors and clips.
Catalog
Conectores para construcción de acero moldeado en frío
C-CF-2017SP
Un catálogo que incluye especificaciones, tablas de carga e ilustraciones de instalación para nuestras abrazaderas y conectores de acero moldeado en frío.
Catalog
DTC Head-of-Wall Slide-Clip Application
T-CF-DTC1SB16
Submittal/substitution request for the DTC for the head-of-wall slide-clip application in cold-formed steel construction.
Submittal
Submittal/Substitution Request Cover
T-CF-CWCSUB16
This editable cover sheet allows for the easy completion of submittal/substitution request forms for Simpson Strong-Tie cold-formed steel connectors.
Submittal
Installer's Pocket Guide
S-C-INSTALL16
S-C-INSTALL16 is a guide featuring updated products, new color illustrations and easier navigation. Some popular structural fastening and anchoring products have also been added.
Installation Guide
Plated-Truss Connectors Installation Guide
WC-C-PTBI18
A wall chart for plated-truss connectors in English and Spanish.
Installation Guide

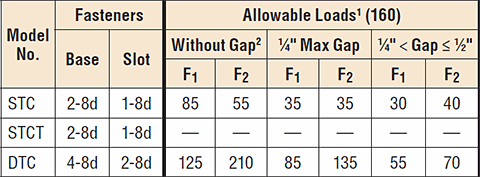

Load Tables

  1. Loads may not be increased for duration of load.
  2. Truss or rafter must bear on top plate to achieve the allowable loads under "Without Gap."
  3. Clips are required on both sides of the truss to achieve F1 loads in both directions (stagger parts to avoid nail interferences).
  4. Fasteners: Nail dimensions in the table are listed diameter by length. For additional information, see Fastener Types and Sizes Specified for Simpson Strong-Tie Connectors.

Code Reports

Part IAPMO UES ER ICC-ES ESR City of Los Angeles State of Florida
DTC ER-124 ER-280 RR25489 FL13872
STC ER-102 ER-124 ER-280 RR25489 FL13872
STCT ER-102 ER-124 ER-280

Drawings

Part Orthographic Perspective
DTC
DTC Front View
DWG DXF
DTC Right View
DWG DXF
DTC Top View
DWG DXF
None
STC
STC Front View
DWG DXF
STC Left View
DWG DXF
STC Right View
DWG DXF
STC Top View
DWG DXF
STC Installed Perspective View
DWG DXF
STCT
STCT Front View
DWG DXF
STCT Right View
DWG DXF
STCT Top View
DWG DXF
None
