Component Solutions® EWP Studio™
Modeling and structural analysis
CS EWP Studio is your comprehensive design solution that adapts with you, regardless of EWP manufacturer.
About the software

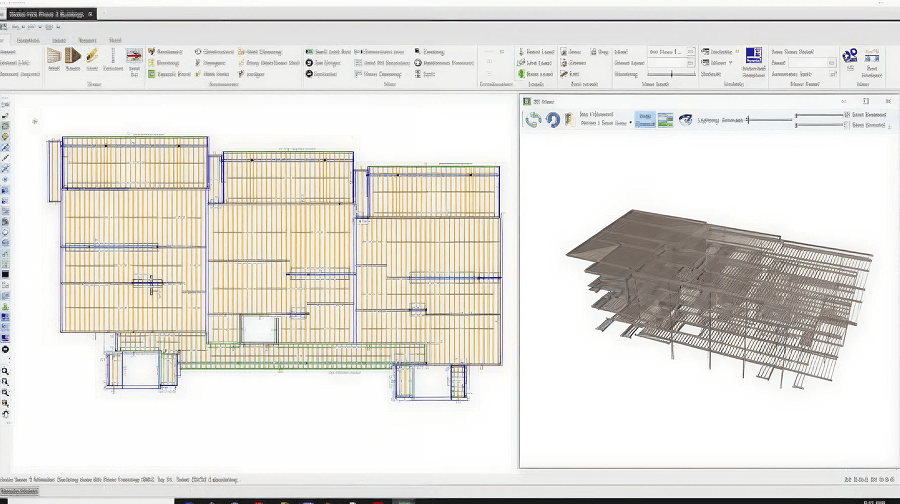

Component Solutions EWP Studio combines 3D layout, member design and material reporting. Choose from a wide array of EWP manufacturers’ products and specify Simpson Strong-Tie connectors and fasteners with confidence. From single-member designs to complex, multi-level layouts, the flexibility of CS EWP Studio makes it an optimal design solution. Since CS EWP Studio supports most EWP products, as well as steel and dimensional lumber, it is your comprehensive design solution that adapts with you, regardless of EWP manufacturer.
Features
- Supports most engineered wood products available in the market in a single platform
- Loads are automatically distributed throughout the 3D model and applied to structural members
- Structural members are analyzed to meet or exceed design criteria, including Simpson Strong-Tie connectors and fasteners
- Utilize a wide array of tools to customize material reports and layouts for your final jobsite documents
- EWP Studio supports the IFC standard allowing building professionals to share relevant BIM data between CS EWP Studio, CS Truss Studio,™ and other BIM applications
- Configure and export project material data to point of sale and enterprise resource planning systems, including Pipeline for your estimating needs and CS Director™ for truss components
- Connects remote designers and users from different locations allowing access to shared material data, graphics libraries and project files
Support
Our Technical Support Department hours are Monday – Friday from 8:00 a.m. – 5:00 p.m. PT. In most cases you will receive a response in two business days or less.
For more information, please contact your Simpson Strong-Tie representative.
