FGTR/LGT/VGT Retrofit Girder Tiedowns

FGTR/LGT/VGT

Girder Tiedowns for Plated Truss

This product's information may differ depending on the category of use. You are currently viewing details related to Girder Tiedowns for Plated Truss. You can also view product information related to the categories of: Girder Tiedowns, Girder Tiedowns for Masonry

The LGT, VGT and FGTR products are moderate to high load capacity girder tie-downs for new or retrofit applications.

LGT connectors provide a low profile connection to the wall for easy installation of drywall. Simple to install and can be installed on the inside or outside of the wall.

The Variable Girder Tiedown (VGT) is a higher capacity alternative to the LGT and MGT for girder trusses. It attaches with Simpson Strong-Tie® Strong-Drive® SDS Heavy-Duty Connector screws to the side of truss and features a predeflected crescent washer that allows it to accommodate top chord pitches up to 8/12. The VGT is also available with one flange concealed for attachment to trusses with no tail.

The Face Mount Girder Tie-Down (FGTR) is a non-pitch-specific girder tiedown that offers the highest uplift capacity for retrofit applications. The FGTRHL/R is designed for corner hip applications.

Material

VGT—7 gauge; LGT2—14 gauge; LGT3/LGT4—12 gauge; FGTR—Straps: 7 gauge, Plate: 3 gauge

Finish

VGT, LGT—Galvanized; FGTR—Powder Coated

Installation

  • Use all specified fasteners. See General Notes.
  • Connectors attached using Titen® screws shall have hex heads.
  • To achieve the loads listed in the table below, the product shall be attached to a grouted and reinforced block wall or a reinforced concrete wall designed by others to transfer the high concentrated uplift loads to the foundation.
  • Strong-Drive SDS screws included with LGT3, LGT4, VGT Series and FGTR Series.
  • VGT/FGTR:

  • Screw holes are configured to allow for double installation on a two-ply (minimum) truss.
  • The product can be installed in a single application or in pairs to achieve a higher uplift capacity.
  • Can be installed on roof pitches up to 8/12 or on a bottom chord designed to transfer the loads.
  • FGTR —Only 2 of the 4 holes provided on each strap are required to be filled to achieve the catalog loads. The first Titen HD® anchor 1/2"x5" (THD) shall be installed a minimum of 4" from the top of the wall. Fasteners shall not be installed in adjacent holes.
  • VGT—When installed on trusses with no overhangs, specify VGTR/L.
  • VGT—Install washer component (provided) so that top of washer is horizontal as well as parallel with top of wall.

Options

LGT3 is available with reduced widths of W = 4 13/16" – order as LGT3N-SDS2.5.

Related Literature

Load Tables

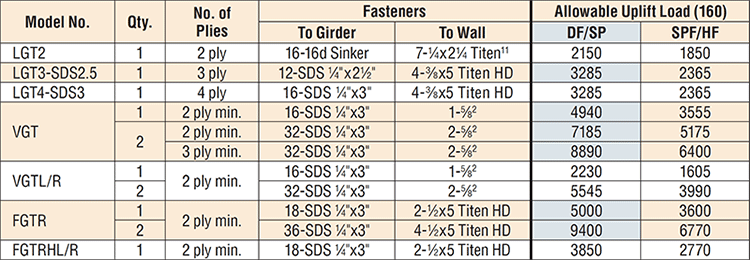

  1. Allowable loads have been increased 60% for wind or earthquake loading with no further increase allowed; reduce where other loads govern.
  2. To achieve the loads listed for the VGT single and double connector options, anchorage into a 8" wide concrete tie-beam or grouted and reinforced CMU tie-beam can be made using Simpson Strong-Tie® SET Epoxy-Tie® adhesive with a minimum embedment depth of 12", a minimum end distance of 12" and centered in the 8" member. Vertical reinforcement may be required to transfer the loads per Designer
  3. Minimum concrete strength f'c shall be 2500 psi. CMU shall have a minimum grout strength of 2500 psi with standard ASTM C90 units and type N or S mortar.
  4. FGTR—Minimum edge distance for Titen HD anchor is 4".
  5. FGTR—Titen HD anchors should be spaced in every other hole on the part.
  6. FGTR—The Titen HD anchors and Strong-Drive SDS Heavy-Duty Connector screws screws are provided with the part.
  7. LGT2—F1 load = 700, F2 load = 170.
  8. See Titen® screw information.
  9. Table allowable loads were determined using tested lowest ultimate/3 or fastener calculation values.
  10. Products shall be installed such that the Titen screws and Titen HD anchors are not exposed to the weather.
  11. For concrete wall applications use 1/4x1 3/4 Titen screws.
  12. Simpson Strong-Tie® Strong-Drive® SDS Heavy-Duty Connector screws are permitted to be installed through metal truss plates as approved by the Truss Designer, provided the requirements of ANSI/TPI 1-2007 Sections 7.5.3.4 and 8.9.2 are met (pre-drilling required through the plate using a maximum of 5/32" bit).
  13. NAILS: 16d Sinker = 0.148" dia. x 3 1/4" long. See other nail sizes and information.

Code Reports

Part IAPMO UES ER ICC-ES ESR City of Los Angeles State of Florida
FGTR FL11473
FGTRHL FL11473
FGTRHR FL11473
LGTSee specific model numbers for code listings.
LGT2 FL11470 FL11473
LGT3-SDS2.5 FL11470 FL11473
LGT4-SDS2.5 No code listing. Please contact us for test data.
VGT FL11470 FL11473
VGTLNo code listing: Please contact us for test data.
VGTRNo code listing: Please contact us for test data.
