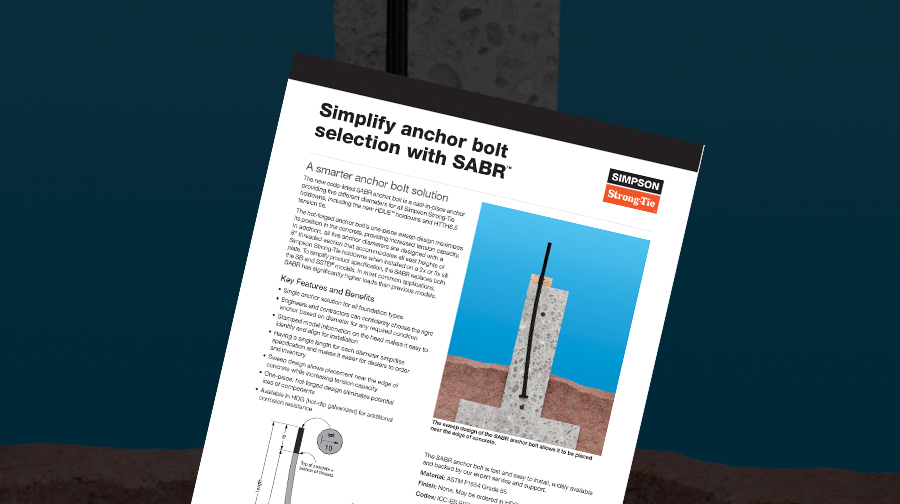

Simplify anchor bolt selection with SABR™
The new code-listed SABR anchor bolt is a cast-in-place anchor providing five different diameters for all Simpson Strong-Tie holdowns, including the new HDUE™ holdown and HTTH™ heavy tension tie.
A smarter anchor bolt solution

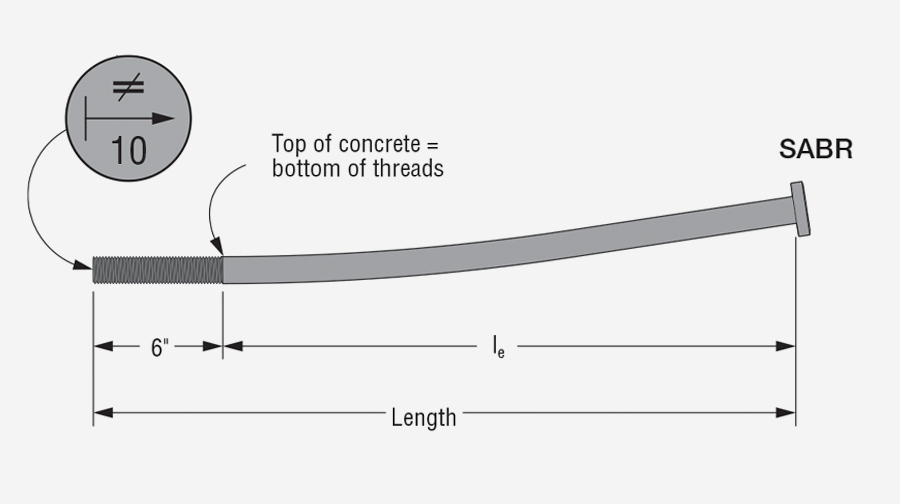

The hot-forged anchor bolt’s one-piece sweep design maximizes its position in the concrete, providing increased tension capacity. In addition, all five anchor diameters feature a 6" threaded section to accommodate a variety of holdown seat heights, including all Simpson Strong-Tie holdowns, when installed on a 2x or 3x sill plate. To simplify product specification, the SABR replaces both our SB and SSTB® models. In most common applications, SABR has significantly higher loads than previous models.
Key Features
- Single anchor solution for all foundation types
- Engineers and contractors can confidently choose the right anchor based on diameter for any required condition
- Stamped model information on the head makes it easy to identify and align for installation
- Having a single length for each diameter simplifies specification and makes it easier for dealers to order and inventory

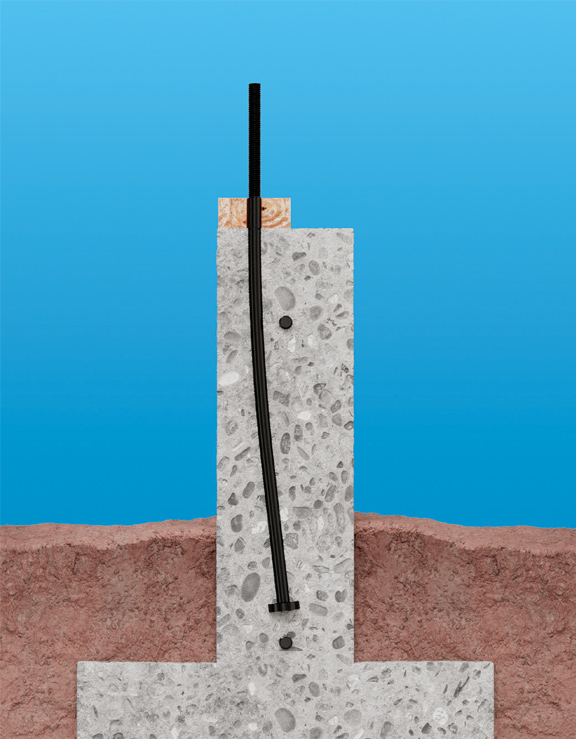

- Sweep design allows placement near the edge of concrete while increasing tension capacity
- One-piece, hot-forged design eliminates potential loss of components
- Available in HDG (hot-dip galvanized) for additional corrosion resistance
Simple and smart.
To simplify product specification, SABR replaces our SB and SSTB® models. The SABR anchor bolt is fast and easy to install, widely available and backed by our expert service and support.
Secure holdowns with strength and speed.
The SABR anchor bolt is fast and easy to install, widely available and backed by our expert service and support.
