Wood Construction Connectors Conversion Charts

Technical & Installation Notes

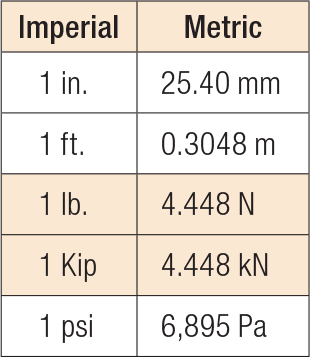

Metric Conversion

Metric Conversion

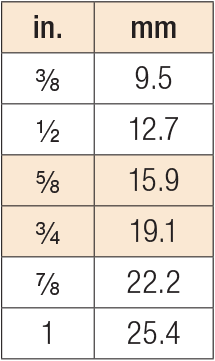

Bolt Diameter

Bolt Diameter

Use the following Roof Pitch to Hip/Valley Rafter Roof Pitch conversion tables only for hip/valley rafters that are skewed 45° right or left. All other skews will cause the slope to change from that listed.

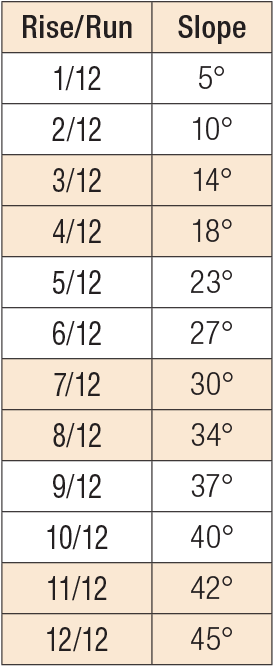

If Common Rafter Roof Pitch is…

Common Rafter Chart

Then Hip/Valley Rafter Roof Pitch becomes…

Rafter Roof Pitch

US Standard Steel Gauge Equivalents in Nominal Dimensions

US Standard Steel Gauge

Steel thickness may vary according to industry mill standards.
